Constructive Synthesis

Ken Wessen

Preface

Synthesis is the electronic generation of audio signals for use in music or as sound effects, or quite possibly a combination of both. Subtractive Synthesis is one important technique of electronic sound production, that was first used in the 1960s, and became increasingly available (and affordable) as analogue synthesisers were produced during the 1970s and beyond.

My aim, through the presentations in these pages, is to lead you to a detailed and well-rounded understanding of the theory of subtractive synthesis, make you comfortable with the application of this theory across a wide variety of synthesisers, and also provide some exposure to the process of building such a synthesiser using modern digital hardware.

Although just one of many approaches to electronic sound creation, the analogue subtractive approach boasts a primary attraction of constructing sounds right down at the level of the waveform. It is not particularly trying to reproduce the sounds of other instruments, certainly not precisely, but supports making new sounds — sounds that are dynamic and recognisably electronic in nature. These may still be closely related to sounds produced by other instruments, or may be entirely novel.

The Roland System 100 synthesiser from 1975.

To the uninitiated, the controls of an analogue, or as is found more frequently these days, a virtual analogue synthesiser, can appear as a daunting nest of knobs, sliders and wires, giving rise to the impression that the process is a very complicated one. Such an impression is often reinforced when initial efforts to produce sounds by random knob fiddling tend to fail utterly. However, it is not really such an arcane practice, but is based on combining a few well defined sub-systems (we will call them modules) in a way that is consistent across nearly all examples from the myriad of synthesisers produced since the 1970s.

To do this requires an understanding of the physics of sound, in particular the nature of the sound waves produced by oscillators, since these provide the raw sonic material. Then there is the action of filters that selectively suppress or enhance features of the sound produced by the oscillators, envelopes that shape the amplitude of the sound and other signals, and low frequency oscillators that produce modulation - i.e. time varying features in the output sound.

A modular view of a subtractive synthesiser.

Although my subject matter is primarily subtractive synthesis, I have chosen the term constructive for my title, and I mean constructive in few different senses:

I will not attempt to cover basic coding or electronics, since there are many alternative sources that concentrate on such things. The coding I use for the interactive web applications is the javascript webaudio library, and for the electronics I use the Teensy and it’s associated Audio Shield, along with the Teensyduino extension of the standard Arduino software environment. If you are interested in building low level circuits for true analogue synthesis, I recommend the book Make: Analog Synthesizers by Ray Wilson.

The presentation will proceed, more or less, module by module following the diagram above, with more than 30 webapps designed to illustrate the material in a visual and interactive way. The reason for the adjective subtractive will become apparent as we consider each of these building blocks of subtractive synthesis in turn. We will look at the theory behind them, the role they play in synthesis, and how they interact with other modules.

10 illustrative projects using the Teensy are also presented, showing all wiring and code, for readers interested in making their own hardware.

An easy to build and use, Teensy-based polyphonic synthesis kit, Mentor, is also available and is described in detail in chapter 9. If you wish to build the kit, it can also be used to illustrate each the important points raised in the earlier chapters.

1 Sound Waves and Oscillators

At the core of any subtractive synthesiser you will find one or more oscillators. These are the modules responsible for generating the original sound sources. As the name implies, subtractive synthesis is about taking things away, so what we get from the oscillator at the start is the major determining factor in what sounds we can make.

But what does it mean to “take away” from a sound?

To better understand sound and be able to answer this question, we need to look at the physics of sound waves in more detail.

1.1 Properties of Sound Waves

The two most important physical parameters that describe a sound wave are its frequency, i.e. how fast the wave is repeating itself, or oscillating, and its amplitude, i.e the size of the associated displacement.

Comparing a lower frequency, large amplitude wave (shown in red) with a higher frequency, small amplitude one (shown in orange).

The frequency of a sound wave corresponds to the pitch, with faster oscillations producing higher notes, and the oscillation itself is a process whereby particles in the air are variously compressed and rarefied in the direction the wave is travelling. The amplitude is a measure of how large a displacement of air is associated with each cycle, with larger displacements producing louder sounds.

Frequency is measured in hertz, abbreviated Hz, where 1Hz corresponds to exactly one cycle per second.

The human ear can hear sounds ranging from 20Hz up to 20kHz, and the frequency range on a standard 88 key piano is from 32.7Hz to 4186Hz. However, we will soon see how a musical sound at some particular frequency generally contains many additional higher frequencies that combine to produce the particular type of sound.

Exponentially increasing frequency

The note A4, i.e. the A above middle C on the piano, has frequency 440Hz, and is regularly used as a standard note for tuning. A frequency change of one octave is a doubling of the frequency, so A3, the note one octave below has a frequency of 220Hz, i.e. half this value, and A5, the note one octave above, is 880Hz. As you can see, this means A5 is 4 times the frequency of A3. Similarly, A6 is 4 times the frequency of A4, and thus 8 times the frequency of A3, and so on.

Note Number Frequency (Hz) Relation to A4
A1 13 55 1 ⁄ 8
A2 25 110 1 ⁄ 4
A3 37 220 1 ⁄ 2
A4 49 440 1
A5 61 880 2
A6 73 1760 4
A7 85 3520 8

Values that change by a constant multiplying factor in this way are said to grow exponentially. To keep musical note indices increasing uniformly, we use a logarithmic scale where every increase of 12 in note number corresponds to an octave increase in note and a doubling of frequency. The size of frequency step of one semitone thus depends on the starting frequency, with the semitone step at the bottom of the piano corresponding to 1.63Hz, at middle C it is 15.6Hz, right up to 235Hz at the top of the piano.

Similarly, frequency changes between notes are measured in units of cents, such that the semitone step between any two consecutive notes corresponds to exactly 100 cents, even though the actual change in frequency depends on the particular notes.

1.2 Wave Types

The next most significant feature of a sound wave is its shape, since this is what determines its timbre — the character of its sound. Music would be very boring if all sounds of a given pitch sounded the same, and when we hear the difference in the sounds produced by various instruments, it is a result of the different shapes of the sound waves produced.

For traditional instruments this is a result of physical aspects of the instrument and the manner in which it is played - e.g. blowing air through a wooden bore or brass tube, vibrating a reed, plucking or striking a string.

Synthesising sound by purely electronic means is of course quite different.

Subtractive synthesis begins with a circuit that generates a basic waveform as a starting point. The 4 most common waveforms generated by analogue synthesisers are:

Sine wave - a pure tone
Triangle wave - a smooth tone
Square wave - a bright tone
Sawtooth wave - a harsh tone

Use the app below to listen to each of these, and the effect of varying frequency and amplitude.

Look at and listen to various Waveforms

1.2.1 Changing the tone

Musically, a sine wave sounds somewhat flute-like (though a real flute has many additional dynamics and thus sounds much more interesting). Let’s start with sine waves since they produce the cleanest tone, and see what happens when they are added together.

The following figure shows 3 sine waves with frequencies increasing in integer multiples (\(f, 2f, 3f\)) and amplitudes decreasing by the same factor (\(1, \frac{1}{2}, \frac{1}{3}\)).

Added together, these waves result in something that looks a little like a sawtooth.

Explore this process further using the following app that allows you to add up to 25 sine waves of increasing frequency, and listen to the result. The plot on the left shows the waveshape of the sum, i.e. the amplitude over time, and the plot on the right shows the spectrum, plotted as decibels vs frequency.

Sum sines web app

1.3 Harmonics

What we saw in the previous section illustrates the fact that, because of its periodic nature, any particular waveform can be understood as a weighted sum of sine waves of different frequencies. The lowest frequency sine wave is called the fundamental, and determines the frequency of the note, and the higher frequency terms are called the overtones. Generally they will be integer multiples of the fundamental (the multiple is known as the wave number), and in this case they are known as harmonics, but for bell-like and percussive sounds, the higher frequencies may be non-integer multiples of the fundamental.

The presence or absence of particular harmonics, and their relative amplitude, is what creates a waves particular character, or timbre. So, for example, when seeking to achieving a string or brass sound, a sawtooth wave is the most appropriate starting point. Single reed instruments (such as a clarinet) are more like square waves, and a flute is closest to a pure sine wave.

The set of harmonics in a wave, and their amplitudes, is known as its spectrum. Let’s revisit the wavetypes app but this time we will add in a spectrum view so we can also look at the harmonic content of the waves.

Harmonics for different wave shapes

In the app, the waves are digitally generated and thus not perfect examples of their type. Additionally, the harmonic amplitudes are plotted in decibels, so the scale is logarithmic and the degree of drop off in amplitude of the higher harmonics is not as obvious to the naked eye. The figures below summarise the results for ideal waves, and show the harmonic amplitudes on a linear scale.

Sine wave - a single frequency component (this is why we say it is a pure tone)
Triangle wave - only odd harmonics are present, with amplitude decreasing like the square of the wave number
Square wave - again only odd harmonics are present, but here the amplitude decreases linearly with the wave number
Sawtooth wave - all harmonics are present, with amplitude decreasing linearly with the wave number

The key insight in subtractive synthesis is if you start with one of these waves, you get all their harmonics for free. You can then reduce or emphasize the relative amplitudes of selected harmonics through a process known as filtering to create new sounds. Because a sawtooth wave has all harmonics, it is often the richest starting point for synthesis.

Digital oscillators and aliasing

You have probably noticed that the waveforms are not perfect shapes. A digital reproduction of a waveform is limited by the sample rate (usually 44100, 48000 or 96000 samples a second). An ideal triangle, sawtooth or square wave will have infinitely many harmonics, but a digital audio signal at 44100 samples per second (CD quality) cannot represent any frequency higher than 22050Hz (because the sampling is not fast enough to capture its variation). This is called the Nyquist limit.

If a digitally generated wave attempts to include harmonics above the Nyquist limit, they essentially get reflected back as lower frequency discordant overtones, and manifest as a kind of harsh noise in the signal. This is a well-known and problematic digital artifact, and is known as aliasing.

1.4 Pulse Waves

We can generalise a square wave by changing the relative amount of time at the upper and lower amplitudes. This is known as a pulse wave, and is described by its pulse width.

A pulse wave differs from a square wave by having a difference in the time spent at the maximum and minimum levels.

Use the following app to explore how the sound deviates from a square wave tone as the pulse width is increased. What do you think will happen as it reaches the maximum?

Pulse Waves

1.5 Playing Notes and MIDI

While a synthesiser can certainly be used to generate sound and sound effects without any need of a keyboard, it is far more common to treat them as a kind of keyboard instrument and have them get their primary frequency input from the notes played.

There are two main ways to communicate played note information to the oscillator in a synthesiser. The first is control voltage and gate, where changes in an input voltage indicate changes of frequency, with the usual standard being a 1V change in voltage signifying a one octave change in pitch. The gate signal indicates when a key is pressed and released. This approach is limited in that support for multiple keys requires additional signal voltages, so CV synths are generally monophonic — they support only a single note at a time (though the control voltage may be passed to 2 or even 3 independent oscillators). Nevertheless, the CV standard allows for some very interesting interoperability between synthesiser modules since all control, be it oscillators, filters, modulators, envelopes etc, use the same interface, and so can be interconnected for an enormously wide variety of complicated interactions and effects.

The second approach uses a serial protocol called MIDI (Musical Instrument Digital Interface), that can communicate note values, keyboard velocity, and many other facets of control of an electronic musical instrument. MIDI has become the standard means of connecting keyboard controllers, synthesisers, electric pianos and computers, and it is the technology we will employ for the hardware projects presented in subsequent chapters.

The MIDI protocol is based on messages. Here are some of the most important:

note on
Note on messages are sent when a keyboard note is played and contain the note number from 21 (A0) to 108 (C8), a velocity value from 0 to 127 indicating how fast the key was pressed, and a channel number from 1 to 16.

Converting a note number \(n\) to a frequency in hertz is according to the formula \[f_n = 440 \times 2^{\frac{1}{12}(n - 69)}.\]

note off
A note off message is sent when a key is lifted, and carries note, velocity and channel data in the same way as the note on message.
control change
Controls on a device may be assigned a specific control number (CC), and then when their position is changed, an associated MIDI message carrying the CC number and a value from 0-127 is generated to indicate the new value for the control. Alternatively, if this message is sent to a device, it will adjust the value of the corresponding control to the sent value.
clock
A MIDI clock message is used to synchronise timing across connected devices, at a rate of 24 clocks per quarter note.

Synthesisers often have quite small keyboards - many serious performance machines only provide 3 octaves. One way to bypass this constraint is to use a Controller Keyboard that connects via MIDI. However, many of these are similarly small.

A standard control on a synth is a range control, that will be marked with lengths in feet in powers of 2 — at least 4’, 8’ and 16’, and often 2’ and 32’ as well. These lengths are a reference to the lengths of pipes in pipe organs, and their effect is octave shifting. Doubling the length of a pipe (or a string) will drop its frequency by one octave, and conversely halving will raise the pitch in the same ratio. It is customary to control octave shifts on an electronic instrument by selecting a virtual pipe ‘length’. The 8’ range is unshifted.

A range control allows quick adjustment of independent oscillators without compromising the tuning, and, when the keyboard is small, the larger shifts allow playing notes over a much greater range. For example, a 3 octave keyboard can reach 2 lower octaves using a 32’ range, and 2 higher octaves with a 2’ range, making 7 octaves in all — just less than a standard piano keyboard.

Each of the earlier apps in this chapter supported quasi-continuous frequency change via a slider control. In contrast, the following app uses a keyboard to determine the required oscillator frequency.

Four tone organ

1.6 Summary

Glossary

Frequency
The rate at which a periodic wave cycles, corresponding to the pitch of the sound.
Amplitude
The maximum displacement level of a periodic wave, corresponding to the loudness of the sound.
Waveshape
The shape of the displacement for a periodic wave over one cycle.
Harmonic
A pure sine of frequency \(nf\) for integer \(n\) that is a component of a periodic wave with frequency \(f\).
Spectrum
The set of all harmonics in a sound.
Timbre
The tonal character of a particular waveshape.
Pulse width
The percentage of time a (generalised) square wave spends at its maximum level.
MIDI
Musical Instrument Digital Interface — a serial protocol for communicating timing, notes and controls between devices.
Monophonic
Describes a device that can only produce sounds associated with a single note at a time.

2 Combining Oscillators

2.1 Mixing Wave Types

Many synthesisers support mixing the basic waveshapes to provide a broader sonic palette. For example, adding in a sawtooth wave to an otherwise smoother waveform adds some “buzz”.

The following app supports continuously varying the waveform from triangle to sawtooth and then to square. See how the features merge in the waveshape, and watch the change in the harmonics as the combined wave transforms.

Mixing Waves

2.2 Phase

Another important parameter describing a sound wave is the phase, measured in degrees and describing how far a wave is through its cycle (just as with a circle, 360 degrees is a full cycle). Unlike frequency and amplitude, this is not something we hear in isolation, but it can have a big effect when waves add.

For example, consider the sum of two sine waves of frequencies \(f\) and \(2f\), in the ratio \(1\) and \(\frac{1}{2}\).

Two sine waves - the second has double the frequency and half the amplitude of the first.
The sum of the previous two sine waves is the first step in building a sawtooth wave.

This is the first step of the sum we look at earlier when making a sawtooth wave.

In the previous example, both waves are in phase, i.e. they start their cycles at exactly the same time. Let’s shift the phase of the higher frequency wave by 1/4 of a cycle (so they are 90 degrees out of phase).

Two sine waves - the second has double the frequency and half the amplitude of the first, and is shifted in phase by 90 degrees (1/4 of a cycle).
This time the sum of the two sine waves has a markedly different shape.

You can see that the resulting wave shape is quite different, but surprisingly, the perceived sound is unaltered. What we hear is determined by the harmonic components alone, and in this case the two harmonic components are still present in the same amounts.

The picture is a little different when considering the effects of phase difference when adding identical waves. The following figure shows the result of summing two identical sine waves with increasing phase separation (perhaps due to a small delay). The results show that starting from an initial in-phase doubling, as the phase shift increases the amplitude of the resulting wave will decrease in amplitude. This is due to increasing cancellation, culminating in silence when the phase shift is exactly half a cycle — for a wave of 440Hz this corresponds to a delay of a little more than 1ms.

Summing two sine waves of the same frequency with increasing phase separation results in increasing cancellation and thus decreasing amplitude.

In the case of more complex waves, this summing of sines still happens at each of the harmonics, but the same time delay leads to a different phase separation at each harmonic, and so the effect is a much richer interaction where some harmonics are enhanced and others are attenuated.

In each of these examples the phase difference was fixed. In the next section we will see how a changing phase relationship between two waves leads to very interesting dynamic features in the sound produced.

2.3 Detuning

When two waves that are very close in frequency, say \(f-\delta\) and \(f+\delta\) for small \(\delta\), are added, the interesting phenomenon of beating occurs. The pitch will be at \(f\), but the envelope will vary at the much slower rate of \(2\delta\).

Two sine waves with different, but very close frequencies.
The waveform that results from their sum.

As the waves go in and out of phase, their combination changes from a sum to a cancellation. A synth with multiple voices will usually provide a unison option where all voices play exactly together to make a rich, thick sound, and also an option to detune, where small frequency shifts can be used to introduce slow phase effects in the overall amplitude.

When the detune amount is small, say a few cents, this tends to soften the sound in much the same way that the sound of the strings section in an orchestra is much smoother than that of a string quartet.

Detune

2.4 Noise

Another audio source that is regularly found in a synthesiser is a noise generator. Unlike the clean, repeating cycles of the standard oscillator waveshapes, a noise signal is random and produces sounds like hissing, crackling, or rushing wind or water.

These sounds can be used to create sound effects, percussive sounds, or just mixed in to some degree with the other more tuneful sounds to make a more interesting synthesised sound.

A noise signal is not a repeating cycle like the other waves we have looked at, but it is still an audio signal with specific spectral properties. Its spectrum is not made up of regularly spaced harmonics, but is rather a mix of all frequencies. Nevertheless, the overall shape of spectrum still determines important aspects of the noise’s audible character.

Traditionally noise is described in colour terms. White noise is a harsh sounding noise with an even spectral distribution. Reducing the higher frequencies softens the sound, producing pink noise, that, because of the nature of human perception, actually sounds more even. Making the higher frequency part of the spectrum drop off even faster produces brown noise, that, with its stronger bass component, can sound like the ocean.

Tilting the noise spectrum in the other direction, so the higher frequencies are enhanced, produces blue noise, a particularly harsh sounding noise reminiscent of hissing or rushing water.

The following app lets you switch between these 4 kinds of noise, blending it in with a standard oscillator, and both hearing and seeing the result on the sound, waveshape and spectrum.

Adding Noise

2.5 Summary

Glossary

Phase
The position within a cycle of a periodic wave.
Detune
Make two oscillators play slightly out of tune with each other in order to generate dynamic effects associated with the time-varying envelope of their sum.
Noise Generator
A source of any particular kind of noise signal that can be used alongside the oscillators.
White Noise
Flat spectrum noise — a harsh sounding noise.
Pink Noise
A filtered noise signal with reduced higher frequencies — a smoother and more even sounding noise for human perception.
Brown Noise
Similar to pink noise, but even softer since the higher frequency components drop off even faster.
Blue Noise
A particularly harsh sounding noise where the lower frequency components are attenuated and the high frequency ones unaltered.

3 Audio and the Teensy

As its name implies, the Teensy is very small, but it is nonetheless a remarkably powerful microcontroller development system: USB powered, easily programmed using the Teensyduino software, and breadboard compatible. Add in the Teensy Audio Shield, and you have support for 16 bit, 44.1 kHz sample rate audio with stereo output and input. The Teensyduino software includes the necessary Audio Library.

The projects that follow do not require a specific version of Teensy, but for speed and memory reasons I strongly recommend using the Teensy 4 or later, though the Teensy 3 variants have 12-bit digital to analogue converters (DACs) for true analogue output which may sometimes be an important consideration. The only additional components we will require are potentiometers and switches for simple external controls, and optionally a MIDI shield or breakout board for external connectivity. Experienced users of Teensy (or Arduino) may wish to add in support for an LCD for showing the values currently set via the potentiometers.

The polyphonic synthesis kit, Mentor, presented in chapter 9, is in some respects simply the union of the many Teensy projects presented over the course of the next 6 chapters. It is easy to build, and can be used instead of the breadboard circuits if desired.

3.1 The Teensy Pinout

My examples use the Teensy 4.1 and its matching Audio Shield, but I will only use pins that are common across all the recent variants.

The Teensy 4.1 The Teensy Audio Shield

The Audio Shield can be stacked directly on top of the Teensy as follows.

The Teensy Audio Shield stacked on top of a Teensy 4.1

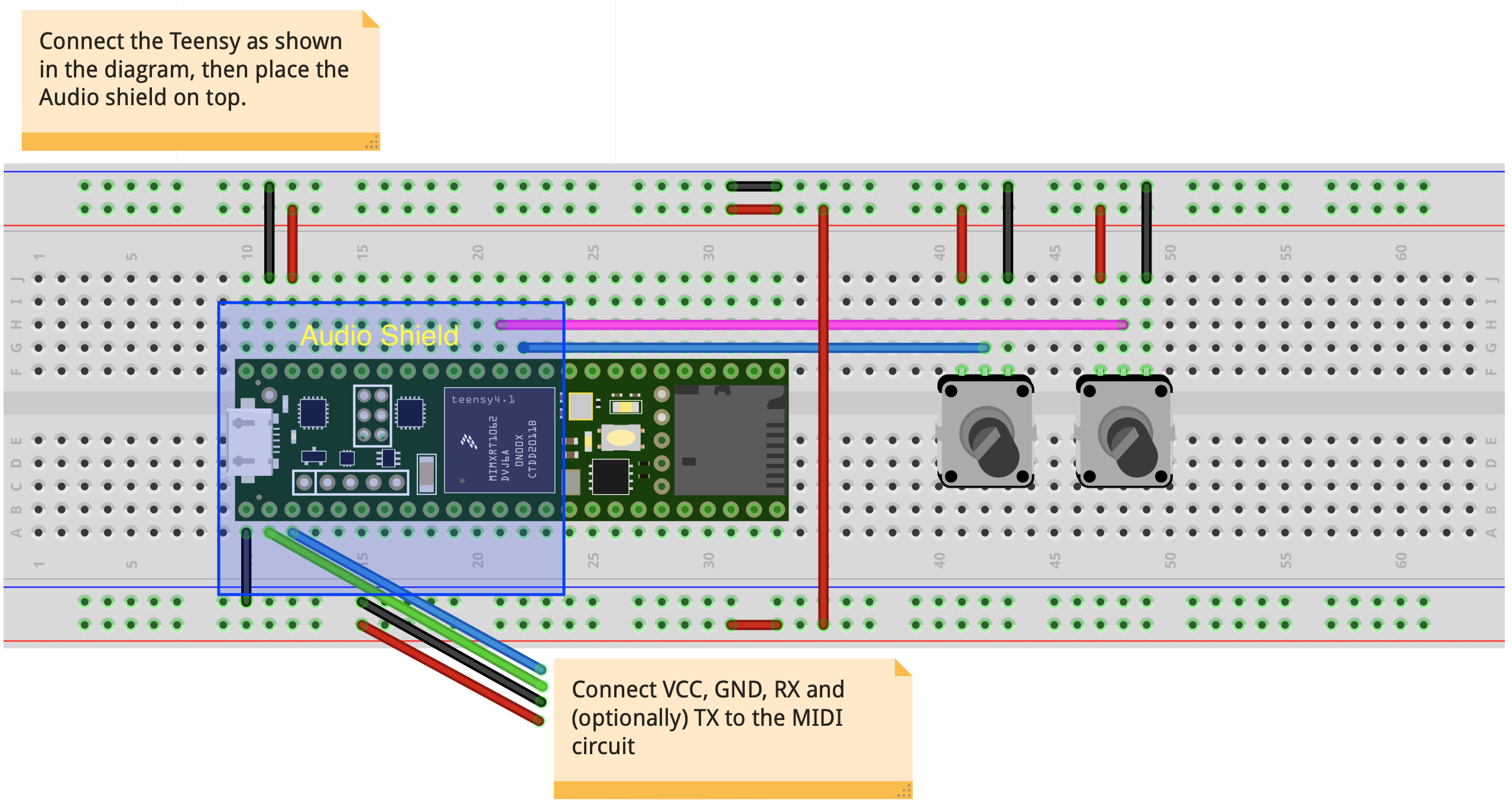

3.2 Setup on a breadboard

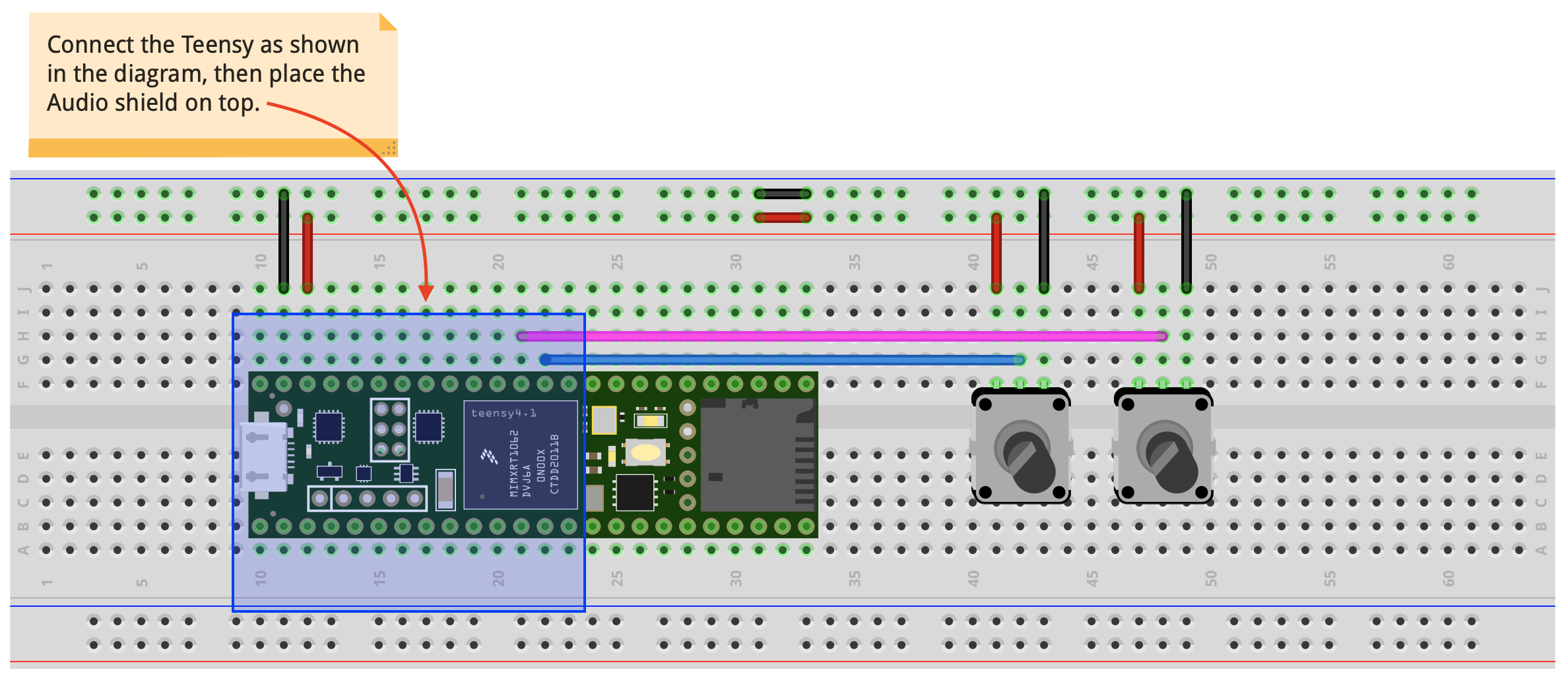

We will want some controls to interact with the Teensy. Let’s start with two potentiometers, connected to analogue pins A0 and A1 on the Teensy. These allow us to read input values from 0 to 1023, depending on their rotation.

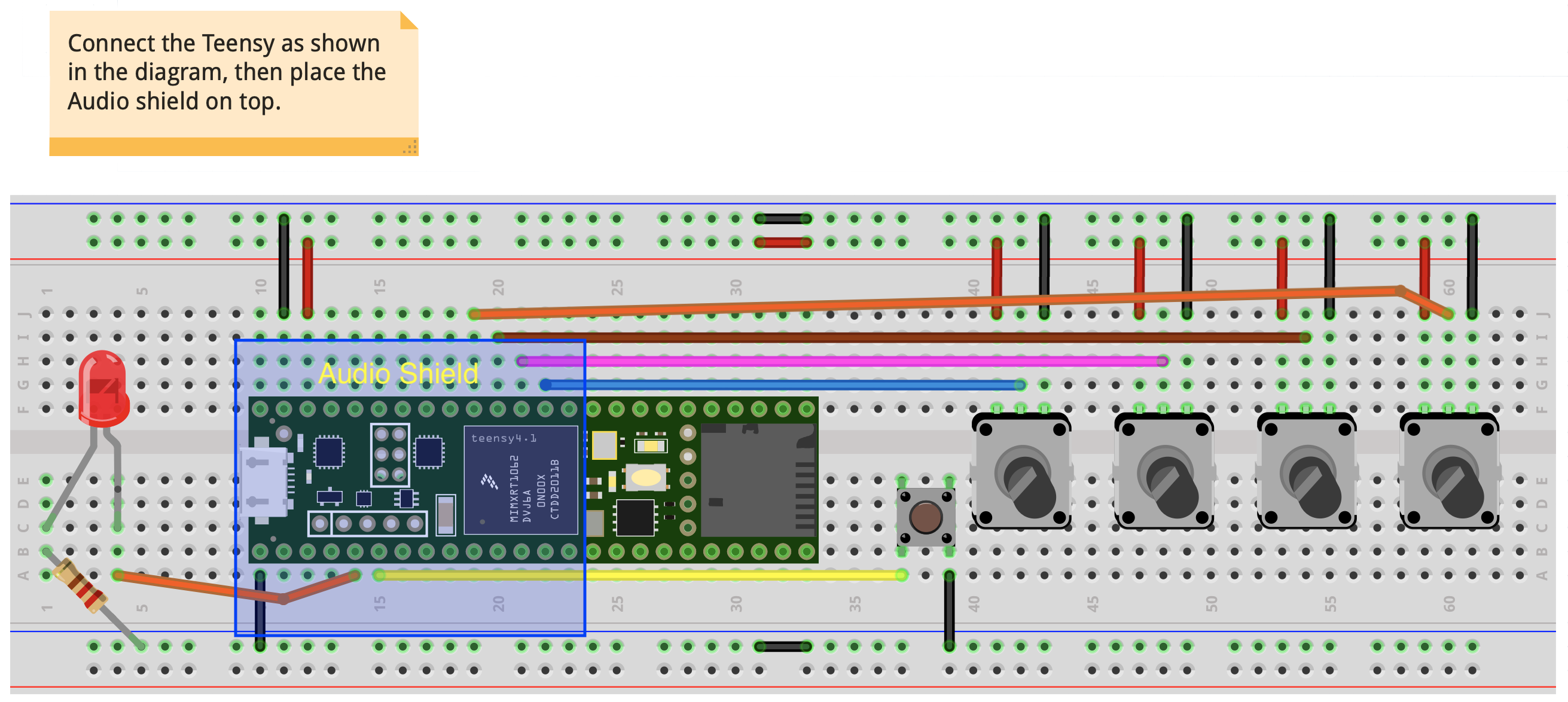

The position of the Audio Shield is indicated by the transparent blue rectangle, since it would otherwise obscure the Teensy pins.

This arrangement is all that is required for the next 4 projects. The Teensy audio code will change, as will the function of the two potentiometers, but the connections will remain the same.

3.3 Project 1: One oscillator - control pitch and amplitude

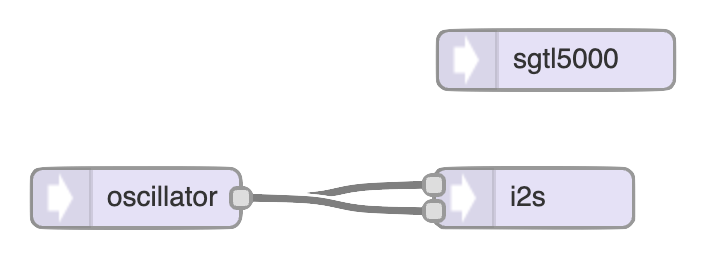

The Audio Library Design Tool functions as a graphical design tool for Teensy audio projects, with code import and export, and as an API reference for the Audio library. This first project is basically the simplest possible controllable “synthesiser”, and this simplicity is clear in the layout shown by the graphical design tool — a single oscillator, an output (i2s) and an audio controller (an SGTL5000 — the low power audio codec provided on the Audio Shield).

Use the Teensyduino software to make a new project called SimpleOscillator, and enter the following code (which includes the header and declaration code exported by the Audio Design Tool).

Show Teensy code

   #include <math.h>

   #include <Audio.h>
   #include <Wire.h>
   #include <SPI.h>
   #include <SD.h>
   #include <SerialFlash.h>

   // GUItool: begin automatically generated code
   AudioSynthWaveform       oscillator;      //xy=252,335
   AudioOutputI2S           i2s;           //xy=451,335
   AudioConnection          patchCord1(oscillator, 0, i2s, 0);
   AudioConnection          patchCord2(oscillator, 0, i2s, 1);
   AudioControlSGTL5000     sgtl5000;     //xy=462,266
   // GUItool: end automatically generated code

   #define PITCH_POT A0
   #define AMP_POT A1

   int pitch = 220;
   int amplitude = 0.5;
   int waveform = WAVEFORM_SINE;

   // pitch scales logarithmically
   float inputToPitch(int input)
   {
       int n = map(input, 0, 1023, 21, 108);
       return 440 * pow(2, (n - 69) / 12.0);
   }

   void setup()
   {
       // reserve some memory for the audio functions
       AudioMemory(20);
       // enable the audio control chip on the Audio Shield
       sgtl5000.enable();
       sgtl5000.volume(0.5);

       // setup the two pins for listening to the pitch and amplitude controls
       pinMode(PITCH_POT, INPUT);
       pinMode(AMP_POT, INPUT);

       // configure and start the oscillator object
       oscillator.amplitude(amplitude);
       oscillator.frequency(pitch);
       oscillator.begin(waveform);
   }

   void loop()
   {
       // read the pitch pot position
       int newpitch = analogRead(PITCH_POT);
       // has it changed?
       if (newpitch != pitch)
       {
           // update if it has
           pitch = newpitch;
           oscillator.frequency(inputToPitch(newpitch));
       }

       // read the amp pot position
       int newamp = analogRead(AMP_POT);
       // has it changed?
       if (newamp != amplitude)
       {
           // update if it has
           amplitude = newamp;
           oscillator.amplitude(1.0f * amplitude / 1024);
       }
   }

The code contains a little bit of Teensy and Audio Library initialisation code, and the output of the single oscillator is determined by setting the frequency, amplitude and waveform (recall from the previous chapter that these are the three fundamental aspects of a sound wave).

In this project, the frequency and amplitude of the output sound changes in response to adjustments in their corresponding potentiometer.

3.4 Project 2: One oscillator - control pitch and wavetype

For this second project we will change the function of the 2nd potentiometer from amplitude to selecting the waveform. Since this is not a straightforwardly numerical parameter to the oscillator, a little extra code is required to define the waveforms we will support, and to manage the transitions. The Teensy supports a variety of predefined waveforms, and also allows you to define your own. We will employ standard sine, triangle, sawtooth and square waves, as well as two fixed predetermined pulse waves — with widths and 25% and 10%.

Use the Teensyduino software to make a new project called WaveType, and enter the following code.

Show Teensy code

   #include <math.h>

   #include <Audio.h>
   #include <Wire.h>
   #include <SPI.h>
   #include <SD.h>
   #include <SerialFlash.h>

   // GUItool: begin automatically generated code
   AudioSynthWaveform       oscillator;      //xy=252,335
   AudioOutputI2S           i2s;           //xy=451,335
   AudioConnection          patchCord1(oscillator, 0, i2s, 0);
   AudioConnection          patchCord2(oscillator, 0, i2s, 1);
   AudioControlSGTL5000     sgtl5000;     //xy=462,266
   // GUItool: end automatically generated code

   #define PITCH_POT A0
   #define WAVETYPE_POT A1

   typedef enum
   {
       SINE, TRIANGLE, SAWTOOTH, SQUARE, PULSE_25, PULSE_10
   } wavetype;

   // map our wavetype to teensy waveform (note there are two pulse waves)
   int wavetypes[] = {
       WAVEFORM_SINE, WAVEFORM_TRIANGLE, WAVEFORM_SAWTOOTH,
       WAVEFORM_SQUARE, WAVEFORM_PULSE, WAVEFORM_PULSE
   };

   #define N_TYPES 6

   int pitch = 220;
   wavetype waveform = SAWTOOTH;

   // pitch scales logarithmically
   float inputToPitch(int input)
   {
       int n = map(input, 0, 1023, 21, 108);
       return 440 * pow(2, (n - 69) / 12.0);
   }

   wavetype getWaveTypeFromValue(int inputValue)
   {
       int n = map(inputValue, 0, 1023, 0, N_TYPES - 1);
       return (wavetype)n;
   }

   void setup()
   {
       // reserve some memory for the audio functions
       AudioMemory(20);
       // enable the audio control chip on the Audio Shield
       sgtl5000.enable();
       sgtl5000.volume(0.5);

       // setup the two pins for listening to the pitch and amplitude controls
       pinMode(PITCH_POT, INPUT);
       pinMode(WAVETYPE_POT, INPUT);

       // configure and start the oscillator object
       oscillator.amplitude(0.5);
       oscillator.frequency(pitch);
       waveform = getWaveTypeFromValue(analogRead(WAVETYPE_POT));
       oscillator.begin(waveform);
   }

   void loop()
   {
       // read the pitch pot position
       int newpitch = analogRead(PITCH_POT);
       // has it changed?
       if (newpitch != pitch)
       {
           // update if it has
           pitch = newpitch;
           oscillator.frequency(inputToPitch(newpitch));
       }

       // read the wavetype pot position
       int v = analogRead(WAVETYPE_POT);
       wavetype newwave = getWaveTypeFromValue(v);
       // has it changed?
       if (newwave != waveform)
       {
           // update if it has
           waveform = newwave;
           oscillator.begin(wavetypes[waveform]);
           if (waveform == PULSE_25)
               oscillator.pulseWidth(0.25);
           else if (waveform == PULSE_10)
               oscillator.pulseWidth(0.1);
           else    // just to be safe
               oscillator.pulseWidth(0.5);
       }
   }

3.5 Project 3: Three oscillators - control pitch and wavetype mix

In section 2.1 of the previous chapter, we looked at smoothly transitioning between triangle, sawtooth and square wavetypes. To do this with Teensy requires three oscillators, one for each wavetype, and we manage the output by adjusting their amplitudes appropriately and mixing their outputs, using 3 channels of the standard 4-to-1 mixer object, to get the final result.

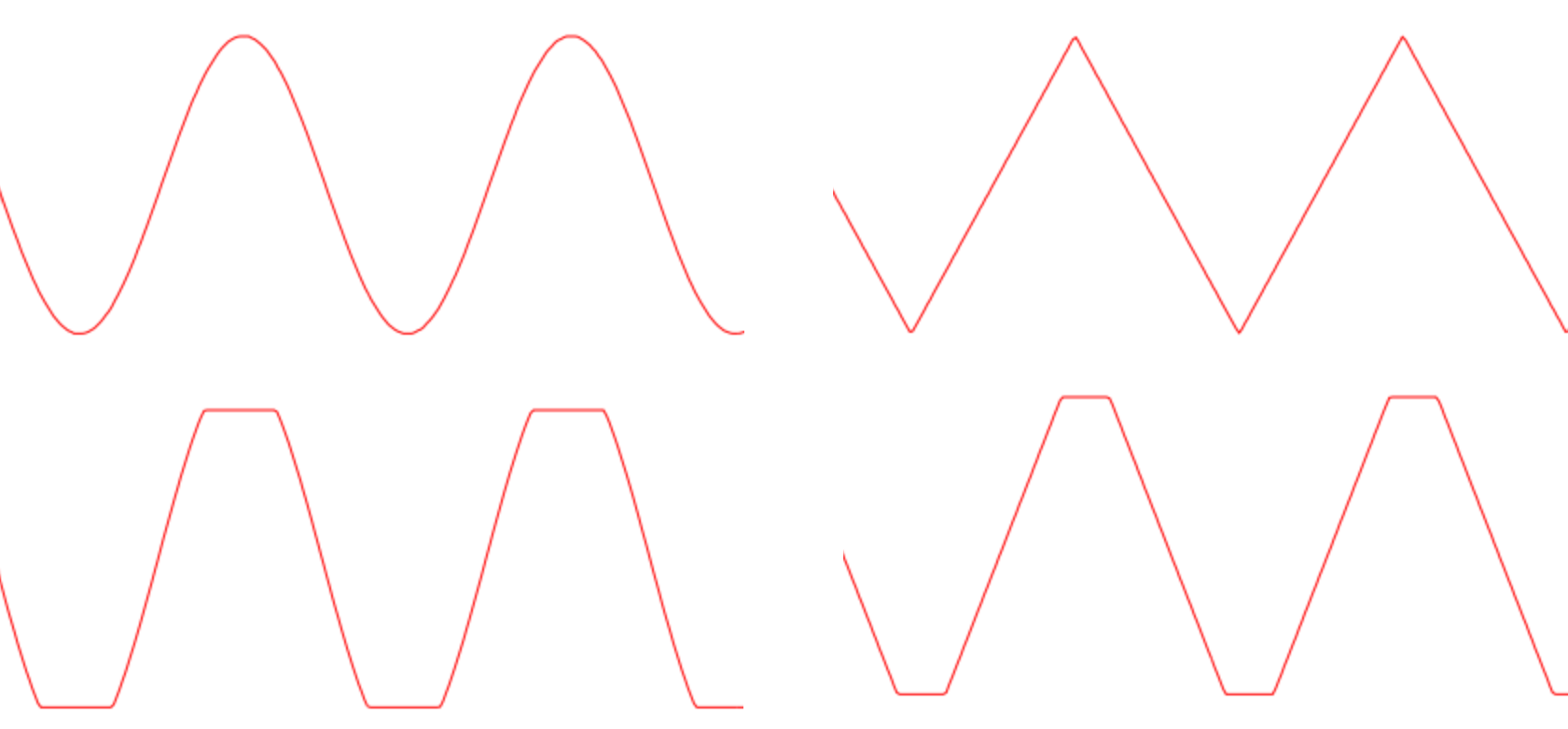

The maximum sum of the output amplitudes must not exceed 1.0, or else clipping, i.e. distortion in the generated sound due to exceeding the amplitude limit, will occur.

The first potentiometer still controls the frequency, but this time the second potentiometer is used to allocate across the wavetypes — fully anti-clockwise to the middle position mixes triangle and sawtooth, and middle to fully clockwise mixes sawtooth and square.

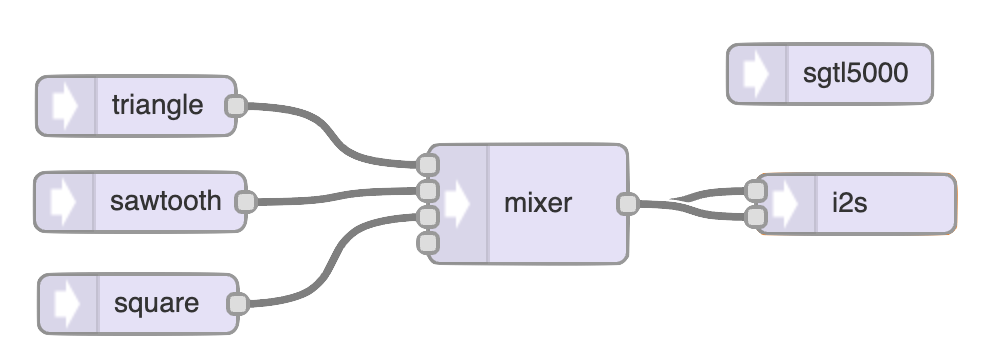

Use the Teensyduino software to make a new project called WaveTypeMix, and enter the following code.

Show Teensy code

   #include <math.h>

   #include <Audio.h>
   #include <Wire.h>
   #include <SPI.h>
   #include <SD.h>
   #include <SerialFlash.h>

   // GUItool: begin automatically generated code
   AudioSynthWaveform       triangle;      //xy=252,289
   AudioSynthWaveform       square; //xy=253,388
   AudioSynthWaveform       sawtooth; //xy=254,337
   AudioMixer4              mixer;         //xy=448,338
   AudioOutputI2S           i2s;           //xy=612,338
   AudioConnection          patchCord1(triangle, 0, mixer, 0);
   AudioConnection          patchCord3(sawtooth, 0, mixer, 1);
   AudioConnection          patchCord2(square, 0, mixer, 2);
   AudioConnection          patchCord4(mixer, 0, i2s, 0);
   AudioConnection          patchCord5(mixer, 0, i2s, 1);
   AudioControlSGTL5000     sgtl5000;     //xy=599,273
   // GUItool: end automatically generated code

   #define PITCH_POT A0
   #define MIX_POT A1

   #define TRIANGLE 0
   #define SAWTOOTH 1
   #define SQUARE 2

   int pitch = 220;
   float mixf = 1.0;

   // pitch scales logarithmically
   float inputToPitch(int input)
   {
       int n = map(input, 0, 1023, 21, 108);
       return 440 * pow(2, (n - 69) / 12.0);
   }

   void applyMixValue(float mixf)
   {
       // allocate across the wavetypes
       // 0 to 1 mixes triangle and sawtooth, 1 to 2 mixes sawtooth and square
       if (mixf < 1)
       {
           mixer.gain(TRIANGLE, 1 - mixf);
           mixer.gain(SAWTOOTH, mixf);
           mixer.gain(SQUARE, 0);
       }
       else
       {
           mixer.gain(TRIANGLE, 0);
           mixer.gain(SAWTOOTH, 2 - mixf);
           mixer.gain(SQUARE, mixf - 1);
       }
   }

   void setup()
   {
       // reserve some memory for the audio functions
       AudioMemory(20);
       // enable the audio control chip on the Audio Shield
       sgtl5000.enable();
       sgtl5000.volume(0.5);

       // setup the two pins for listening to the pitch and amplitude controls
       pinMode(PITCH_POT, INPUT);
       pinMode(MIX_POT, INPUT);

       // configure and start the three oscillators
       triangle.frequency(pitch);
       triangle.amplitude(0.5);
       triangle.begin(WAVEFORM_TRIANGLE);

       sawtooth.frequency(pitch);
       sawtooth.amplitude(0.5);
       sawtooth.begin(WAVEFORM_SAWTOOTH);

       square.frequency(pitch);
       square.amplitude(0.5);
       square.begin(WAVEFORM_SQUARE);

       applyMixValue(mixf);
   }

   void loop()
   {
       // read the pitch pot position
       int newpitch = analogRead(PITCH_POT);
       // has it changed?
       if (newpitch != pitch)
       {
           // update if it has
           pitch = newpitch;
           triangle.frequency(inputToPitch(newpitch));
           sawtooth.frequency(inputToPitch(newpitch));
           square.frequency(inputToPitch(newpitch));
       }

       // read the mix pot position
       float newmix = 2 * analogRead(MIX_POT) / 1023.0;
       // has it changed?
       if (newmix != mixf)
       {
           // update if it has
           mixf = newmix;
           applyMixValue(mixf);
       }
   }

3.6 Project 4: Two oscillators - control pitch and detune

In section 2.3 of the previous chapter, we saw and heard the interesting dynamic results of detuning — mixing two waves of close frequency. With two oscillators and the Teensy, we can generate the same effect.

The first potentiometer controls the frequency, and the second one controls the detuning, from -100 to 100 cents (i.e. a semitone in each direction).

Use the Teensyduino software to make a new project called Detune, and enter the following code.

Show Teensy code

   #include <math.h>

   #include <Audio.h>
   #include <Wire.h>
   #include <SPI.h>
   #include <SD.h>
   #include <SerialFlash.h>

   // GUItool: begin automatically generated code
   AudioSynthWaveform       oscillator1;      //xy=252,289
   AudioSynthWaveform       oscillator2; //xy=254,337
   AudioMixer4              mixer;         //xy=448,338
   AudioOutputI2S           i2s;           //xy=612,338
   AudioConnection          patchCord1(oscillator1, 0, mixer, 0);
   AudioConnection          patchCord2(oscillator2, 0, mixer, 1);
   AudioConnection          patchCord3(mixer, 0, i2s, 0);
   AudioConnection          patchCord4(mixer, 0, i2s, 1);
   AudioControlSGTL5000     sgtl5000;     //xy=599,273
   // GUItool: end automatically generated code

   #define PITCH_POT A0
   #define DETUNE_POT A1

   int pitch = 220;
   int detune = 0;
   int detunepotvalue = 0;
   int waveform = WAVEFORM_SAWTOOTH;

   // pitch scales logarithmically
   float inputToPitch(int input, int detune)
   {
       int n = map(input, 0, 1023, 21, 108);
       float f = 440 * pow(2, (n - 69) / 12.0);
       // calculate the detuned frequency using the fact that there are 1200 cents in an octave
       return f * pow(2, detune / 1200.0);
   }

   /*
    * Because pot reading can be noisy, we will work with an average of the most recent 'n' readings.
    * This is a useful utility function for working with a Teensy.
    */
   int smoothpot(int newvalue, int curvalue, int n)
   {
     return floor(((n - 1) * curvalue + newvalue) / n);
   }

   void setup()
   {
       // reserve some memory for the audio functions
       AudioMemory(20);
       // enable the audio control chip on the Audio Shield
       sgtl5000.enable();
       sgtl5000.volume(0.5);

       // setup the two pins for listening to the pitch and amplitude controls
       pinMode(PITCH_POT, INPUT);
       pinMode(DETUNE_POT, INPUT);

       // configure and start the oscillators
       oscillator1.frequency(pitch);
       oscillator1.amplitude(0.5);
       oscillator1.begin(waveform);
       oscillator2.frequency(pitch);
       oscillator2.amplitude(0.5);
       oscillator2.begin(waveform);
   }

   void loop()
   {
       // read the pitch pot position
       int newpitch = analogRead(PITCH_POT);
       // has it changed?
       if (newpitch != pitch)
       {
           // update if it has
           pitch = newpitch;
           oscillator1.frequency(inputToPitch(newpitch, 0));
           oscillator2.frequency(inputToPitch(newpitch, detune));
       }

       // read the detune pot position
       detunepotvalue = smoothpot(analogRead(DETUNE_POT), detunepotvalue, 16);
       int newdetune = detunepotvalue / 5 - 102; // range is -102 to 102 cents
       // make 0 a bit sticky since it is an important value and there is
       // a lot of noise when reading a pot like this
       if (newdetune > 0)
           newdetune = max(0, newdetune - 2);
       else if (newdetune < 0)
           newdetune = min(0, newdetune + 2);
       // has it changed?
       if (newdetune != detune)
       {
           // update if it has
           detune = newdetune;
           oscillator1.frequency(inputToPitch(newpitch, 0));
           oscillator2.frequency(inputToPitch(newpitch, detune));
       }
   }

3.7 Project 5: MIDI input

To use MIDI we need to wire in a MIDI connector. A standard MIDI connector is a 5 pin DIN, and a complete MIDI in/out circuit uses just 2 connectors, 4 resistors, a diode and an opto-coupler to ensure the connected systems are electrically isolated. The easiest option is to use one of the readily available MIDI shields, or a MIDI I/O breakout board, and just connect the 4 wires as shown below.

The MIDI library included with the Teensyduino software makes the communication with a MIDI controller easy, and we will use it for this project.

First connect up the input from a MIDI board/shield to the RX pin (we only receive MIDI in this example, but it is well worth extending it to try transmitting as well). Since the input note determines frequency we no longer need a frequency potentiometer, so one pot will be for wavetype, and the other will be a range selector, supporting the octave ranges 32’, 16’, 8’, 4’ and 2’.

Use the Teensyduino software to make a new project called MIDI, and enter the following code. The audio library object connections are the same as used in the WaveType circuit.

Show Teensy code

   #include <math.h>
   #include "MIDI.h"

   #include <Audio.h>
   #include <Wire.h>
   #include <SPI.h>
   #include <SD.h>
   #include <SerialFlash.h>

   // GUItool: begin automatically generated code
   AudioSynthWaveform       oscillator;      //xy=252,335
   AudioOutputI2S           i2s;           //xy=451,335
   AudioConnection          patchCord1(oscillator, 0, i2s, 0);
   AudioConnection          patchCord2(oscillator, 0, i2s, 1);
   AudioControlSGTL5000     sgtl5000;     //xy=462,266
   // GUItool: end automatically generated code

   #define RANGE_POT A0
   #define WAVETYPE_POT A1

   typedef enum
   {
       SINE, TRIANGLE, SAWTOOTH, SQUARE, PULSE_25, PULSE_10
   } wavetype;

   int wavetypes[] = {
       WAVEFORM_SINE, WAVEFORM_TRIANGLE, WAVEFORM_SAWTOOTH,
       WAVEFORM_SQUARE, WAVEFORM_PULSE, WAVEFORM_PULSE
   };

   #define N_TYPES 6

   float volume = 0.5;
   int pitch = 220;
   int octaveshift = 0;
   int curnote = 0;
   wavetype waveform = (wavetype)100;  // illegal value guarantees update on first loop

   // Define the callbacks for handling MIDI note on and note off messages
   void handleNoteOn(byte channel, byte pitch, byte velocity);
   void handleNoteOff(byte channel, byte pitch, byte velocity);

   // Create a hardware MIDI instance on Serial1 (pins 1 and 2)
   MIDI_CREATE_INSTANCE(HardwareSerial, Serial1, MIDI);

   // pitch scales logarithmically
   float inputToPitch(int n)
   {
       return 440 * pow(2, (n - 69) / 12.0);
   }

   wavetype getWaveTypeFromValue(int inputValue)
   {
       int n = map(inputValue, 0, 1023, 0, N_TYPES - 1);
       return (wavetype)n;
   }

   void playNote(bool updateWaveType)
   {
       if (updateWaveType)
       {
           oscillator.begin(wavetypes[waveform]);
           if (waveform == PULSE_25)
               oscillator.pulseWidth(0.25);
           else if (waveform == PULSE_10)
               oscillator.pulseWidth(0.1);
           else    // just to be safe
               oscillator.pulseWidth(0.5);
       }
       if (curnote)
       {
           oscillator.amplitude(volume);
           oscillator.frequency(inputToPitch(curnote + octaveshift * 12));
       }
   }

   void handleNoteOn(byte channel, byte pitch, byte velocity)
   {
       // set the current active note
       curnote = pitch;
       playNote(false);
   }

   void handleNoteOff(byte channel, byte pitch, byte velocity)
   {
       if (pitch == curnote)
       {
           // turn off the oscillator because the active note has been lifted
           oscillator.amplitude(0);
           curnote = 0;
       }
   }

   void setup()
   {
       // reserve some memory for the audio functions
       AudioMemory(20);
       // enable the audio control chip on the Audio Shield
       sgtl5000.enable();
       sgtl5000.volume(0.5);

       // setup the two pins for listening to the range and wavetype controls
       pinMode(RANGE_POT, INPUT);
       pinMode(WAVETYPE_POT, INPUT);

       // Setup the MIDI listening on channel 1
       MIDI.begin(1);
       MIDI.setHandleNoteOn(handleNoteOn);
       MIDI.setHandleNoteOff(handleNoteOff);
   }

   void loop()
   {
       // read the range pot position
       int newrange = map(analogRead(RANGE_POT), 0, 1023, -2, 2);
       // has it changed?
       if (newrange != octaveshift)
       {
           // update if it has
           octaveshift = newrange;
           playNote(false);
       }

       // read the wavetype pot position
       int v = analogRead(WAVETYPE_POT);
       wavetype newwave = getWaveTypeFromValue(v);
       // has it changed?
       if (newwave != waveform)
       {
           // update if it has
           waveform = newwave;
           playNote(true);
       }

       // check for MIDI messages (the callbacks will handle them if there are any)
       MIDI.read();
   }

3.8 Summary

4 Filtering

The simplest way to think about a filter is as a device that alters the spectrum of a sound by attenuating particular frequencies. Any harmonics of the sound wave that fall in the affected frequency range will have their amplitude reduced to some degree, while other frequencies will pass through unaltered.

There is an enormous variation of filter types and implementations used in synthesis. We will look in detail at the two most common general classes of filter: low pass and high pass, characterised by a cut-off frequency that quantifies the starting point of significant attenuation, but there are also band pass filters, notch filters, comb filters, and even an “all pass” filter that doesn’t attenuate any frequencies!

Filters may also be resonant, in which case frequency components around their cut-off frequency will be amplified.

However, filters make other changes to the character of the sound since the process of filtering also affects the phase of the sound wave. As we saw in section 2.2, adding identical but phase shifted waves affects the harmonics differently. Since this process happens internally to the filter, the timbre of the output can be quite drastically altered, and this is why the filter of any given synthesiser is the component most responsible for its characteristic “sound” (and also why an all pass filter is still useful).

A useful analogy is with a stringed instrument: the string is the oscillator — responsible for producing the raw sound, but the body of the instrument, be it a violin, guitar, or piano say, is akin to the filter in the synth, selectively attenuating and enhancing harmonics. This is why the highest quality instruments have the most attention paid to this aspect of their design and construction.

The central importance of filtering to the technique of sound production we are studying is, of course, captured in its name — subtractive synthesis.

4.1 Low Pass Filtering

A low pass filter reduces the harshness or brightness of a sound by attenuating the higher frequency harmonic components. With regard to the waveshape, this has the effect of rounding off any sharp edges. Thinking in terms of the harmonics, the resulting wave becomes like the sum of fewer and fewer sine waves, and we get the reverse effect to that which we saw with the Adding Sines app in section 1.2.1. Eventually only the fundamental frequency will remain and all waveshapes are reduced to a pure sine wave under enough filtering. Going below the fundamental removes all sound.

Often a filter is described as being open or closed, depending on how many harmonics are being let through or attenuated.

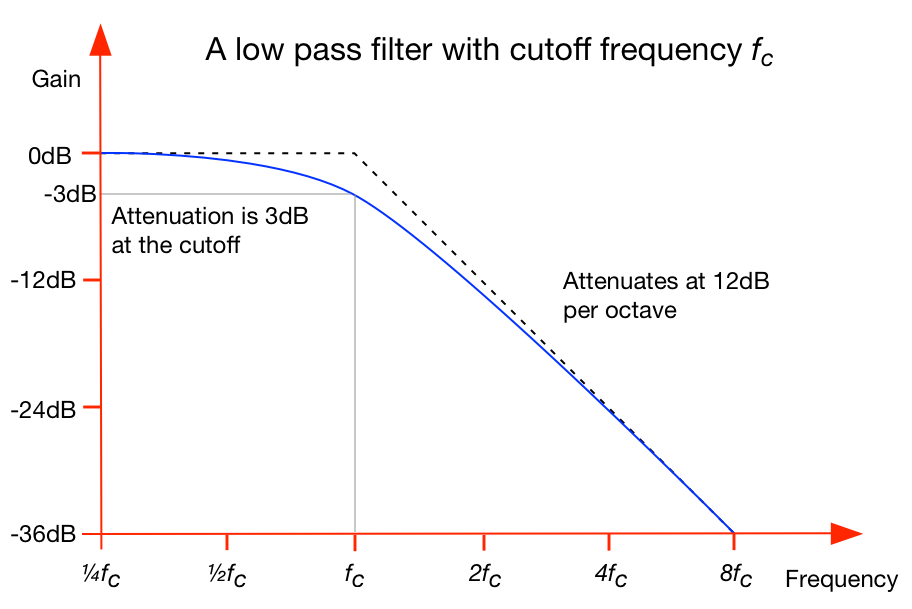

The frequency response curve describes the rate of attenuation vs frequency for a filter, and the following figure shows a curve for a 12db/octave low pass filter. The frequency axis has octave steps labelled (doubling frequency each step) and the gain axis is in steps of 12dB (12dB/octave and 24dB/octave are the most commonly used attenuation rates).

The following app lets you see and hear all these aspects of low pass filtering on different wave shapes.

A Low Pass Filter

4.2 Resonance

Far and away the most commonly employed filter in subtractive synthesis is a resonant low pass filter, that combines a low pass filter as above with a controllable degree of resonance — emphasis of harmonics around the cut-off frequency.

Hear and see the effect of resonance with the following app.

A Resonant Low Pass Filter

Cut-off and resonance combine to create much of the signature sound of subtractive synthesis.

For some filters, when resonance is at a maximum, the filter itself will oscillate. This is called self-oscillation and produces a sine wave. Combined with key tracking (which we will see in section 4.5 below) you can actually “play” the filter as a sine wave oscillator. Without key tracking, you can still alter the frequency using the cut-off control, and replicate the sounds of a theremin.

4.3 High Pass Filtering

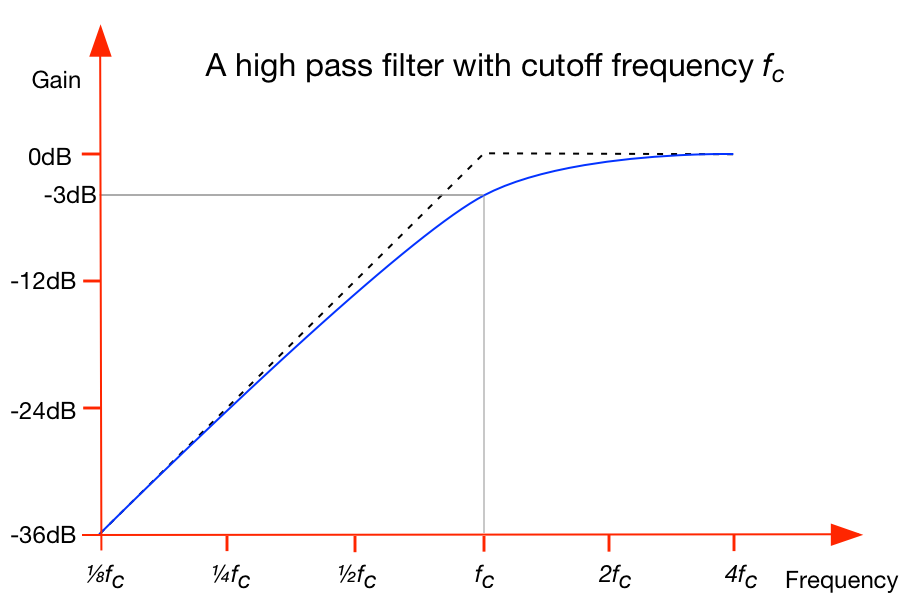

As clearly indicated by its name, high pass filtering has the opposite effect to low pass filtering. For a high pass filter, the cut-off frequency determines the point at which lower frequency harmonics begin to be significantly attenuated.

This can be useful when you need to reduce the muddiness or rumbling within a sound, and can lead to some very interesting waveforms as the following app shows.

A High Pass Filter

4.4 Project 6: Teensy Filtering

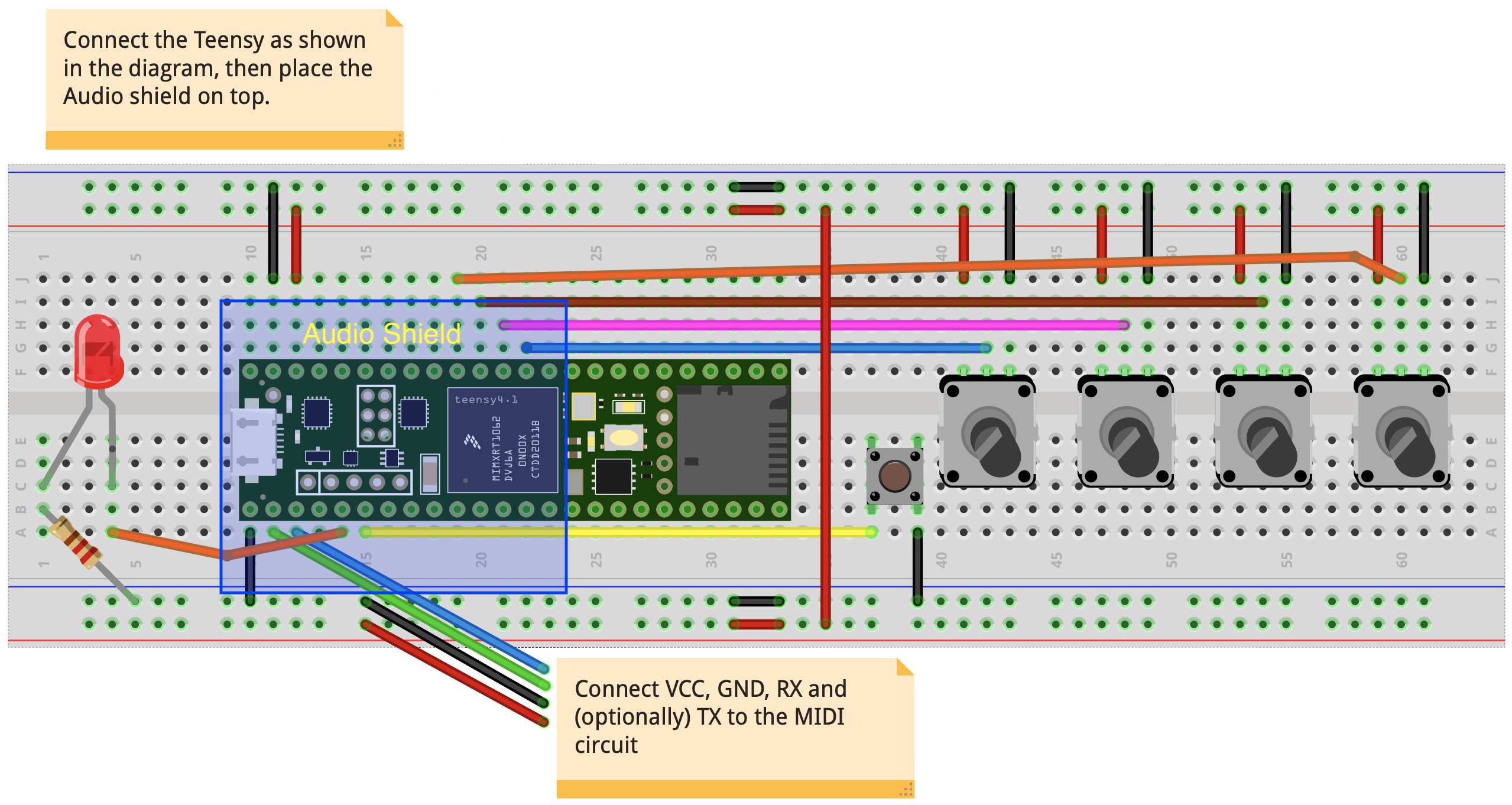

For this project we need more control than the 2 potentiometers we used in the previous chapter, so we will add an additional 2 potentiometers, as well as a button and associated LED to manage state. The full set of connections needs to be as shown below:

The Teensy Audio Library provides a 12dB/octave filter object that supports resonance, and has three outputs — one each for a low pass, band pass and high pass filtered output. As in Project 2, one potentiometer will control the pitch, and another will control the wave type. The additional 2 potentiometers will control the cut-off frequency and the resonance, and the button will cause the output signal to switch between the low pass and the high pass filtered signal. A mixer object is placed after the filter and used to allow only the desired signal through.

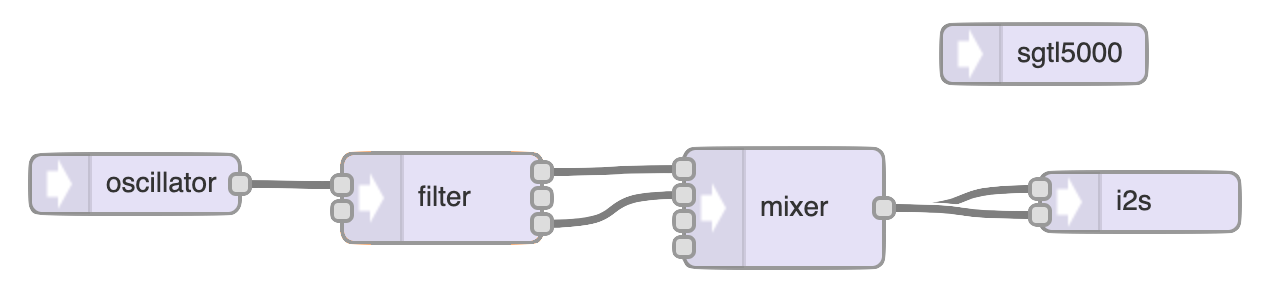

Show Teensy code

   #include <math.h>

   #include <Audio.h>
   #include <Wire.h>
   #include <SPI.h>
   #include <SD.h>
   #include <SerialFlash.h>

   // GUItool: begin automatically generated code
   AudioSynthWaveform       oscillator;     //xy=83.5,203
   AudioFilterStateVariable filter;        //xy=237,210
   AudioMixer4              mixer;         //xy=408,215
   AudioOutputI2S           i2s;            //xy=586,212
   AudioConnection          patchCord1(oscillator, 0, filter, 0);
   AudioConnection          patchCord2(filter, 0, mixer, 0);
   AudioConnection          patchCord3(filter, 2, mixer, 1);
   AudioConnection          patchCord4(mixer, 0, i2s, 0);
   AudioConnection          patchCord5(mixer, 0, i2s, 1);
   AudioControlSGTL5000     sgtl5000;       //xy=538,138
   // GUItool: end automatically generated code

   #define PITCH_POT A0
   #define WAVETYPE_POT A1
   #define CUTOFF_POT A2
   #define RES_POT A3

   #define LED 3
   #define HIGH_LOW_SW 4

   typedef enum
   {
       SINE, TRIANGLE, SAWTOOTH, SQUARE, PULSE_25, PULSE_10
   } wavetype;
   // map our wavetype to teensy waveform (note there are two pulse waves)
   int wavetypes[] = {
       WAVEFORM_SINE, WAVEFORM_TRIANGLE, WAVEFORM_SAWTOOTH,
       WAVEFORM_SQUARE, WAVEFORM_PULSE, WAVEFORM_PULSE
   };

   #define N_TYPES 6

   int pitch = 220;
   wavetype waveform = SAWTOOTH;
   int cutoff = 2000;
   int resonance = 0;
   bool isLowPass = true;

   // pitch scales logarithmically
   float inputToPitch(int input)
   {
       int n = map(input, 0, 1023, 21, 108);
       return 440 * pow(2, (n - 69) / 12.0);
   }

   // input is from 0 to 127
   void setCutoff(int u)
   {
       // Use an exponential curve from 50Hz to about 12kHz
       float co = 50 * exp(5.481 * u / 127.0);
       filter.frequency(co);
       filter.octaveControl(log2f(12000.0 / (float)co));
   }

   // input is from 0 to 127
   void setResonance(int u)
   {
       // Convert to an appropriate range for the Teensy Audio Library filter object
       filter.resonance(u * 4.3 / 127.0 + 0.7);
   }

   wavetype getWaveTypeFromValue(int inputValue)
   {
       int n = map(inputValue, 0, 1023, 0, N_TYPES - 1);
       return (wavetype)n;
   }

   void updateFilter()
   {
       digitalWrite(LED, isLowPass);
       // turn on the correct channel from the mixer
       mixer.gain(0, isLowPass ? 1 : 0);
       mixer.gain(1, isLowPass ? 0 : 1);
   }

   void setup()
   {
       // reserve some memory for the audio functions
       AudioMemory(20);
       // enable the audio control chip on the Audio Shield
       sgtl5000.enable();
       sgtl5000.volume(0.5);

       // setup the two pins for listening to the pitch and amplitude controls
       pinMode(PITCH_POT, INPUT);
       pinMode(WAVETYPE_POT, INPUT);
       // and the two pins for the filter pots
       pinMode(CUTOFF_POT, INPUT);
       pinMode(RES_POT, INPUT);

       // and the switch/LED pins
       pinMode(LED, OUTPUT);
       pinMode(HIGH_LOW_SW, INPUT_PULLUP);
       updateFilter();

       setCutoff(cutoff / 127.0);
       setResonance(resonance / 127.0);

       // configure and start the oscillator object
       oscillator.amplitude(1);
       oscillator.frequency(pitch);
       waveform = getWaveTypeFromValue(analogRead(WAVETYPE_POT));
       oscillator.begin(waveform);
   }

   void loop()
   {
       static long lastpress = 0;
       if ((digitalRead(HIGH_LOW_SW) == 0) && (millis() - lastpress > 200))
       {
           // switch is on (line pulled low)
           lastpress = millis();
           isLowPass = !isLowPass;
           updateFilter();
       }

       // read the pitch pot position
       int newpitch = analogRead(PITCH_POT);
       // has it changed?
       if (newpitch != pitch)
       {
           // update if it has
           pitch = newpitch;
           oscillator.frequency(inputToPitch(newpitch));
       }

       // read the wavetype pot position
       int v = analogRead(WAVETYPE_POT);
       wavetype newwave = getWaveTypeFromValue(v);
       // has it changed?
       if (newwave != waveform)
       {
           // update if it has
           waveform = newwave;
           oscillator.begin(wavetypes[waveform]);
           if (waveform == PULSE_25)
               oscillator.pulseWidth(0.25);
           else if (waveform == PULSE_10)
               oscillator.pulseWidth(0.1);
           else    // just to be safe
               oscillator.pulseWidth(0.5);
       }

       // read the cutoff pot position
       int newcutoff = analogRead(CUTOFF_POT) >> 3;
       // has it changed?
       if (newcutoff != cutoff)
       {
           // update if it has
           cutoff = newcutoff;
           setCutoff(cutoff);
       }

       // read the resonance pot position
       int newres = analogRead(RES_POT) >> 3;
       // has it changed?
       if (newres != resonance)
       {
           // update if it has
           resonance = newres;
           setResonance(resonance);
       }
   }

4.5 Key Tracking

With a fixed filter cut-off frequency, the effect on a note’s harmonics will depend on the frequency of that note. For example, a cut-off of 800Hz will only significantly attenuate the 8th and higher harmonics of the note G2 at 98Hz, but will be strongly attenuating all harmonics above the second for A4 at 440Hz. Going even further, the fundamental for C6 at 1047Hz is well above the cut-off frequency.

This shows how the filter effects the timbre (or, equivalently, the waveshape) of a note differently depending on its frequency.

Key tracking overcomes this by adjusting the cut-off frequency with pitch, making the cut-off frequency change and keeping the timbre (i.e. the spectral profile of the harmonics) more consistent across the keyboard. This may or may not be desired, and so it is generally adjustable.

Key Tracking

4.6 Summary

Glossary

Cut-off Frequency
The frequency at which a low pass or high pass filter is applying a 3dB attenuation to the input signal.
Resonance
A measure of the amount of amplification of harmonics at and around the cut-off frequency.
Frequency response curve
A curve that describes a filter’s response for all input frequencies.
Low pass filter
A filter that attenuates frequencies above a particular cut-off frequency,
High pass filter
A filter that attenuates frequencies below a particular cut-off frequency,
Band pass filter
A filter that attenuates frequencies within a particular frequency range.
Key tracking
Adjusting the cut-off frequency inline with the frequency of the played note.
Self-oscillation
When a maximum resonance filter produces a sine-wave due to feedback.

5 Envelopes

An envelope is a single-cycle time-varying amplitude. Starting and ending at zero, it is usually used to control the change in loudness of a played note over time, but is also regularly applied to the cut-off frequency of a filter, and sometimes even to the pitch of an oscillator.

The loudness envelope is one of the most recognisable aspects of the sound produced by a physical instrument. For a bowed instrument, such as violin or cello, the musician can control the loudness at all times through their use of the bow. Conversely, on a piano or acoustic guitar, when a string is played there is a very rapid rise to a volume determined by the force with which the note was struck or the the string plucked, followed by a slow decay at a rate that is outside of the player’s control. An organ note has a very simple loudness contour — immediately reaching it’s fixed volume, and remaining there as long as the key is held, before immediately dropping to silence when the key is released. A brass sound can rise to its maximum fast or slow, and then tends to drop down a little to a holding level, before stopping immediately when blowing ceases.

In this chapter we will look at the way that envelopes are usually modelled in subtractive synthesisers, specifically with the four stage ADSR model introduced by Bob Moog in the 1960s.

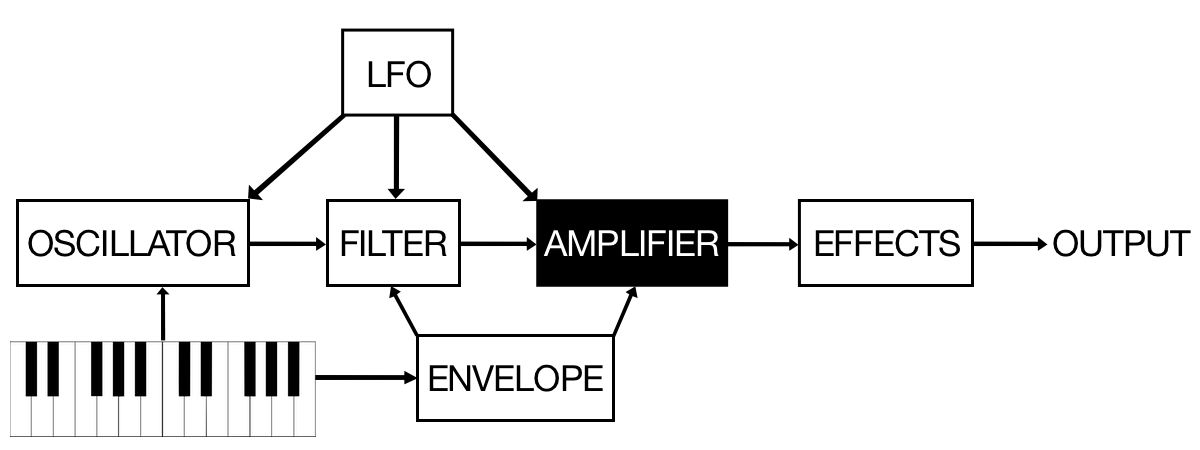

In our generic synthesiser diagram the envelope module is connected to the keyboard, since the variation is triggered when a key is pressed.

This also brings up an interesting point regarding polyphony — i.e. supporting the playing of multiple notes simultaneously. In a truly polyphonic synthesiser, each note is completely independent and follows its own envelope (and has its own filter as well). In an analogue synthesiser this means substantial additional electronics, and thus expense, for each voice. One way that polyphony is achieved more simply is to support independent oscillators for each voice, but have them share the envelope and filter. A synthesiser that works this way is called paraphonic, and any group of held notes will rise and fall following a single envelope, even if they were not played at the same time.

5.1 Attack and Decay

As an initial model, we will think about the volume profile for our synthesised notes as being comprised of two stages. The initial stage is the attack, and this determines how quickly the volume rises to the maximum. Upon reaching maximum, the second stage, the decay, begins, and this stage determines how quickly the note subsequently falls to zero.

Each stage is characterised by a length of time, generally up to a maximum of a few seconds, and the associated volume change during each transition may be either linear or exponential.

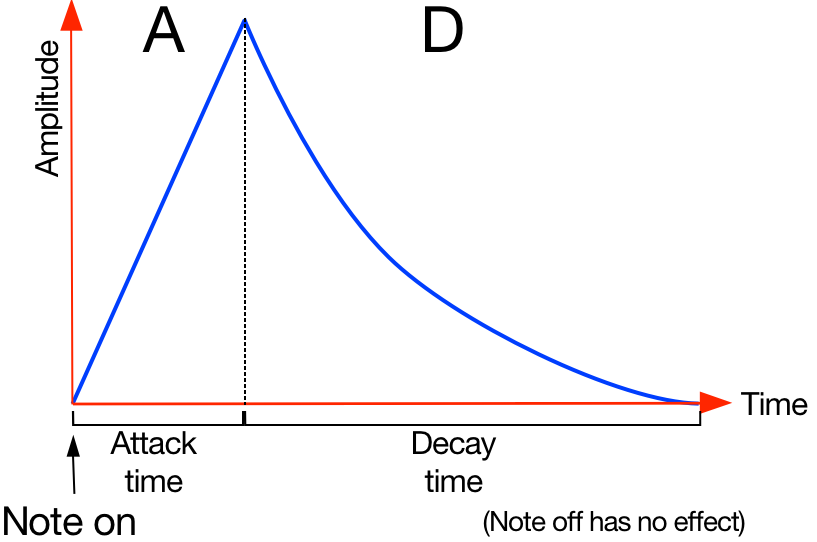

The figure below illustrates an AD envelope with a linear attack and an exponential decay.

Use the following app to see and hear the results of changing the AD envelope parameters. Press the desired waveform button to simulate playing a note.

AD Amplitude Envelope

5.2 Sustain and Release

We can further refine the loudness profile by adding a third and fourth stage. The third stage, sustain, determines the fixed loudness of the sound while the key is being held down (and after any transients due to attack and decay have completed). Note that when sustain is included in the envelope, the decay stage doesn’t reduce to zero, but rather to the sustain level. The final stage, release, determines how quickly a note fades to silence once the key is lifted.

The signal that a synthesiser relies on to manage the envelope process is called a gate. It usually is linked to a keyboard and remains on during the entire duration of a key press. The attack stage of an ADSR envelope starts when the gate signal starts, and the release stage starts when the gate signal ends.

The attack, decay and release parameters each determine the length of time the envelope spends in the corresponding stage, whereas sustain specifies an amplitude level, since the time spent in the sustain stage is determined by the duration of the keypress.

The following app includes an adjustable ADSR envelope. Use it to see and hear the results of changing the envelope’s shape. Press the desired waveform button to simulate playing a note, and hit the Stop button to release the note.

ADSR Amplitude Envelope

5.3 Project 7: Teensy ADSR Envelope

To experiment with an ADSR envelope on the Teensy we will need to connect 4 potentiometers, one for each envelope control, as well as MIDI input so we can use an external controller to send in notes for the pitch and the triggering of the envelope. We will also make use of the button to enable and disable the envelope shaping of the output sound.

Fortunately, the Teensy Audio Library includes an ADSR envelope object (actually it implements a six-stage DAHDSR envelope, where the additional stages are an initial delay time and a hold time between the attack and decay) that makes coding the desired behaviour much easier.

The analogue inputs on the Teensy are 10 bit, meaning they return values in the range 0 to \(2^{10} - 1 = 1023\). By shifting out the 3 least significant bits to make the reading more stable to noise we get a useful default scale for the control values of 0 to \(2^7 - 1 = 127\) (this also corresponds to the range used in MIDI messages).

For our attack, decay and release values, we will scale this value based on a desired maximum time length of 10 seconds using

#define ENV_MILLIS 10000

and calculating the time in milliseconds from the value as

pot_val / 127.0 * ENV_MILLIS

as required by the library object.

The connections for the library objects are as shown in the following diagram. We will use a mixer to choose between the output with or without the shaping provided by the envelope.

Show Teensy code

   #include <math.h>
   #include "MIDI.h"

   #include <Audio.h>
   #include <Wire.h>
   #include <SPI.h>
   #include <SD.h>
   #include <SerialFlash.h>

   // GUItool: begin automatically generated code
   AudioSynthWaveform       oscillator;     //xy=83.5,203
   AudioEffectEnvelope      envelope;      //xy=240,167
   AudioMixer4              mixer;         //xy=386,207
   AudioOutputI2S           i2s;            //xy=555,206
   AudioConnection          patchCord1(oscillator, envelope);
   AudioConnection          patchCord2(oscillator, 0, mixer, 1);
   AudioConnection          patchCord3(envelope, 0, mixer, 0);
   AudioConnection          patchCord4(mixer, 0, i2s, 0);
   AudioConnection          patchCord5(mixer, 0, i2s, 1);
   AudioControlSGTL5000     sgtl5000;       //xy=511,138
   // GUItool: end automatically generated code

   #define A_POT A0
   #define D_POT A1
   #define S_POT A2
   #define R_POT A3

   #define LED 3
   #define ENABLE 4

   #define ENV_MILLIS 10000 // max transition time is 10s

   float volume = 0.5;
   int pitch = 220;
   int curnote = 0;

   int a_val = 30;
   int d_val = 60;
   int s_val = 100;
   int r_val = 60;

   bool enable = true;

   // Define the callbacks for handling MIDI note on and note off messages
   void handleNoteOn(byte channel, byte pitch, byte velocity);
   void handleNoteOff(byte channel, byte pitch, byte velocity);

   // Create a hardware MIDI instance on Serial1 (pins 1 and 2)
   MIDI_CREATE_INSTANCE(HardwareSerial, Serial1, MIDI);

   // pitch scales logarithmically
   float inputToPitch(int n)
   {
       return 440 * pow(2, (n - 69) / 12.0);
   }

   void handleNoteOn(byte channel, byte pitch, byte velocity)
   {
       // set the current active note
       curnote = pitch;
       oscillator.amplitude(volume);
       oscillator.frequency(inputToPitch(curnote));
       envelope.noteOn();
   }

   void handleNoteOff(byte channel, byte pitch, byte velocity)
   {
       if (pitch == curnote)
       {
           // turn off the oscillator because the active note has been lifted
           if (!enable)
               oscillator.amplitude(0);
           curnote = 0;
           envelope.noteOff();
       }
   }

   void setup()
   {
       // reserve some memory for the audio functions
       AudioMemory(20);
       // enable the audio control chip on the Audio Shield
       sgtl5000.enable();
       sgtl5000.volume(0.5);

       // setup four pins for listening to the ADSR controls
       pinMode(A_POT, INPUT);
       pinMode(D_POT, INPUT);
       pinMode(S_POT, INPUT);
       pinMode(R_POT, INPUT);

       // and the switch/LED pins
       pinMode(LED, OUTPUT);
       pinMode(ENABLE, INPUT_PULLUP);
       updateEnable();

       oscillator.begin(WAVEFORM_SQUARE);

       // Setup the MIDI listening on channel 1
       MIDI.begin(1);
       MIDI.setHandleNoteOn(handleNoteOn);
       MIDI.setHandleNoteOff(handleNoteOff);
   }

   bool checkPot(int *curValue, int pin)
   {
       int newValue = analogRead(pin) >> 3;  // reduce to between 0 to 127
       // has it changed?
       if (newValue != *curValue)
       {
           *curValue = newValue;
           return true;
       }
       return false;
   }

   void updateEnable()
   {
       digitalWrite(LED, enable);
       // turn on the correct channel from the mixer
       mixer.gain(0, enable ? 1 : 0);
       mixer.gain(1, enable ? 0 : 1);
       if (!enable && curnote == 0)
           oscillator.amplitude(0);
   }

   void loop()
   {
       static long lastpress = 0;
       if ((digitalRead(ENABLE) == 0) && (millis() - lastpress > 200))  // switch is on (line pulled low)
       {
           lastpress = millis();
           enable = !enable;
           updateEnable();
       }

       if (checkPot(&a_val, A_POT))
           envelope.attack(a_val / 127.0 * ENV_MILLIS);  // attack time in ms

       if (checkPot(&d_val, D_POT))
           envelope.decay(d_val / 127.0 * ENV_MILLIS);  // decay time in ms

       if (checkPot(&s_val, S_POT))
           envelope.sustain(s_val / 127.0);  // sustain is a level, not a time

       if (checkPot(&r_val, R_POT))
           envelope.release(r_val / 127.0 * ENV_MILLIS);  // release time in ms

       // check for MIDI messages (the callbacks will handle them if there are any)
       MIDI.read();
   }

5.4 Linking the Envelope and the Filter

As mentioned earlier, envelopes are regularly applied to the cut-off frequency of a filter, thus causing the harmonic content of the wave to vary over time. This can be a very pleasing effect and, although it is also an important feature of traditional musical instruments, it is one of the signature sounds of synthesiser music.

The envelope shape causes the cut-off frequency to increase from its set value over the period of attack, then drop to the sustain amount during the decay stage. Just like with the loudness envelope, the value remains static during the sustain stage before dropping back to its set value over the release.

An amount setting will be used to control the extent to which the envelope effects the cut-off, and the behaviour in the release stage depends on the note remaining audible due to also having some release in its loudness envelope. For many synthesisers the same envelope is used for both loudness and filter cut-off.

Use the following app to see how the envelope affects the shape of the filter and, correspondingly, the harmonic content of the output sound.

Filter Envelope

5.5 Inverting the Filter Envelope

It is not uncommon for a synth to support inverting the action of the envelope on the filter. When inverted, the attack stage corresponds to the filter closing, before the decay stage where it partially opens to a degree controlled by the sustain level, and finally returning to its original level over the release period.

Use the following app to see and hear the difference between a filter that opens while following the envelope compared to an inverted one that closes.

Inverting the Filter Envelope

5.6 Summary

Glossary

Envelope
A time varying amplitude countour.
Trigger
A signal that starts an envelope’s process.
Gate
A signal that indicates the duration of a key press. The attack stage of an ADSR envelope starts when the gate signal starts, and the release stage starts when the gate signal ends.
ADSR
The standard 4-stage synthesiser envelope, where A stands for attack, D for decay, S for sustain, and R for release.
Attack
The initial stage of an ADSR or related envelope where the amplitude rises from 0 to its full volume in response to a key down or other trigger.
Decay
The second stage of an ADSR or related envelope where the amplitude drops from its maximum to its sustain level.
Sustain
The third stage of an ADSR or related envelope where the amplitude remains steady at a specified level.
Release
The final stage of an ADSR envelope where the amplitude drops from the sustain level to 0, after key release.
Polyphonic
A device that can produce independent sounds in response to multiple notes at a time.
The maximum number of notes that can be played simultaneously is called the polyphony of the device.
Paraphonic
A reduced approach to polyphony where simultaneously held notes share a filter and are constrained to follow a single envelope.

6 Modulation

6.1 The LFO

In the previous chapter we saw how an envelope can control the loudness profile when a note is hit and released, or how it can be used to control the cut-off frequency of a filter. In general terms, a modulator is any component that introduces dynamic changes to the basic sound, and an envelope is one such component.

An ADSR envelope is an example of a one time curve — it starts when triggered, progresses through the attack and decay stages, becomes static while the note is held, and finally decaying after the note is lifted. The other common type of modulator is a Low Frequency Oscillator, or LFO, that, unlike the oscillators we discussed earlier, is not used to make an audio signal, but rather to change (i.e. modulate) other parameters. The range of frequencies supported by an LFO begins well below audible frequencies, maybe as low as 0.1Hz (or equivalently 10s to complete a full cycle), and rarely goes higher than 100Hz.

To use an LFO for modulation you must specify not only the rate of oscillation, but also an amount that determines the maximum range of the variation. An LFO may be bipolar, i.e. the modulation acts to both increase and decrease the input value, or unipolar, where the modulation acts in one direction only.

Two standard such aspects in traditional music are vibrato — the slow modulation of pitch, and tremolo — the slow modulation of amplitude. An LFO is also routinely used to modulate a filter’s cut-off frequency, often called a sweep when the rate is slow and the amount is high, or a wah-wah or wobble when the rate is faster.

6.2 Pitch Modulation

If the LFO destination is the pitch, then the pitch modulates around the base value at the LFO rate, producing the vibrato effect.

Use the following app to apply low frequency pitch modulation to the sound from a standard oscillator. Adjust the rate and the amount to hear the difference in the resulting signal.

LFO Pitch Modulation

6.3 Filter Modulation

If the LFO destination is the filter, then it is the cut-off frequency that is modulated around the base value at the LFO rate.

Use the following app to apply low frequency filter cut-off modulation to the sound from a standard oscillator. Adjust the rate and the amount to hear the difference in the resulting signal. The resonance is not modulated, but by adjusting the resonance level you can listen to the interesting ways that it interacts with the varying cut-off frequency.

LFO Filter Modulation

6.4 Project 8: LFO Modulation

For the next Teensy project, we will combine both of these kinds of modulation, using 4 potentiometers to control the oscillator wavetype, pitch, LFO rate & amount, and a button to choose between pitch modulation and filter modulation.

In the Teensy code we will multiply the LFO oscillator output with a constant scaling factor set by the amount potentiometer to produce an adjustable level of modulation. (In fact we will use two, one for pitch and one for the filter.)

Show Teensy code

   #include <math.h>

   #include <Audio.h>
   #include <Wire.h>
   #include <SPI.h>
   #include <SD.h>
   #include <SerialFlash.h>

   // GUItool: begin automatically generated code
   AudioSynthWaveformDc     pitchAmt;            //xy=90,133
   AudioSynthWaveform       LFO;      //xy=90,194
   AudioSynthWaveformDc     filterAmt; //xy=90,255
   AudioEffectMultiply      multiply;      //xy=247,160
   AudioEffectMultiply      multiply1; //xy=250,233
   AudioSynthWaveformModulated oscillator;   //xy=396,166
   AudioFilterStateVariable filter;        //xy=541,224
   AudioOutputI2S           i2s;            //xy=707,208
   AudioConnection          patchCord1(pitchAmt, 0, multiply, 0);
   AudioConnection          patchCord2(LFO, 0, multiply, 1);
   AudioConnection          patchCord3(LFO, 0, multiply1, 0);
   AudioConnection          patchCord4(filterAmt, 0, multiply1, 1);
   AudioConnection          patchCord5(multiply, 0, oscillator, 0);
   AudioConnection          patchCord6(multiply1, 0, filter, 1);
   AudioConnection          patchCord7(oscillator, 0, filter, 0);
   AudioConnection          patchCord8(filter, 0, i2s, 0);
   AudioConnection          patchCord9(filter, 0, i2s, 1);
   AudioControlSGTL5000     sgtl5000;       //xy=618,140
   // GUItool: end automatically generated code

   #define PITCH_POT A0
   #define CUTOFF_POT A1
   #define RATE_POT A2
   #define AMOUNT_POT A3

   #define LED 3
   #define PITCH_FLT_SW 4

   int pitch = 220;
   int cutoff = 2000;
   int rate = 0;
   int amount = 0;
   bool isPitch = true;

   // pitch scales logarithmically
   float inputToPitch(int input)
   {
       int n = map(input, 0, 1023, 21, 108);
       return 440 * pow(2, (n - 69) / 12.0);
   }

   // input is from 0 to 127
   void setCutoff(int u)
   {
       // Use an exponential curve from 50Hz to about 12kHz
       float co = 50 * exp(5.481 * u / 127.0);
       filter.frequency(co);
       filter.octaveControl(log2f(12000.0 / (float)co));
   }

   void setLFORate(int u)
   {
   // convert log scale 0 to 127 to a linear rate
   // f(1) = 0.5Hz, f(127) = 40Hz
       float f = exp(u / 25.0) / 4.0;
       LFO.frequency(f);
   }

   void updateLFO()
   {
       digitalWrite(LED, isPitch);
       pitchAmt.amplitude(isPitch ? amount / 127.0 : 0);
       filterAmt.amplitude(isPitch ? 0 : amount / 127.0);
   }

   void setup()
   {
       // reserve some memory for the audio functions
       AudioMemory(20);
       // enable the audio control chip on the Audio Shield
       sgtl5000.enable();
       sgtl5000.volume(0.5);

       // setup the two pins for listening to the pitch and amplitude controls
       pinMode(PITCH_POT, INPUT);
       pinMode(CUTOFF_POT, INPUT);
       pinMode(RATE_POT, INPUT);
       pinMode(AMOUNT_POT, INPUT);

       // and the switch/LED pins
       pinMode(LED, OUTPUT);
       pinMode(PITCH_FLT_SW, INPUT_PULLUP);
       updateLFO();

       // configure and start the oscillator object
       oscillator.amplitude(0.5);
       oscillator.frequency(pitch);
       oscillator.begin(WAVEFORM_SAWTOOTH);
       oscillator.frequencyModulation(1);

       setLFORate(rate);
       LFO.amplitude(1);
       LFO.begin(WAVEFORM_TRIANGLE);
   }

   void loop()
   {
       static long lastpress = 0;
       if ((digitalRead(PITCH_FLT_SW) == 0) && (millis() - lastpress > 200))  // switch is on (line pulled low)
       {
           lastpress = millis();
           isPitch = !isPitch;
           updateLFO();
       }

       // read the pitch pot position
       int newpitch = analogRead(PITCH_POT);
       // has it changed?
       if (newpitch != pitch)
       {
           // update if it has
           pitch = newpitch;
           oscillator.frequency(inputToPitch(newpitch));
       }

       // read the cutoff pot position
       int newcutoff = analogRead(CUTOFF_POT) >> 3;
       // has it changed?
       if (newcutoff != cutoff)
       {
           // update if it has
           cutoff = newcutoff;
           setCutoff(cutoff);
       }

       // read the cutoff pot position
       int newrate = analogRead(RATE_POT) >> 3;
       // has it changed?
       if (newrate != rate)
       {
           // update if it has
           rate = newrate;
           setLFORate(rate);
       }

       // read the cutoff pot position
       int newamount = analogRead(AMOUNT_POT) >> 3;
       // has it changed?
       if (newamount != amount)
       {
           // update if it has
           amount = newamount;
           updateLFO();
       }
   }

6.5 LFO Wave Shapes

Throughout the above discussion we haven’t explicitly considered the waveshape for the LFO, but it actually matters a great deal. The audible effect of the modulation varies greatly with the shape of the LFO.

The most common LFO waveshapes are sine, triangle, square, sawtooth and ramp (or reverse sawtooth).

This is similar to the audio oscillators, but there is one very important difference. For an LFO, it is not the harmonic content of the wave that matters, but its shape. For example, ramp and sawtooth sound exactly the same, and so an audio oscillator will only have one of them. But as modulators, they are very different, since a ramp is a rapid rise followed by a slow fall, whereas a sawtooth is a slow rise followed by a rapid fall.

With the app below you can hear the different results that arise from the different LFO shapes, for both pitch and filter modulation.

LFO Shapes

6.6 Pulse Width Modulation

Recall the pulse waveshape we looked at in section 1.4, a generalised square wave where the relative amount of time at the upper and lower amplitude limits was determined by the pulse width. Pulse width is a common target for LFO modulation, since cycling the pulse width makes for a harmonically interesting, dynamic sound.

Use the following app to listen to the different sounds generated by a dynamic pulse width of various kinds.

Pulse Width Modulation

6.7 Sample and Hold

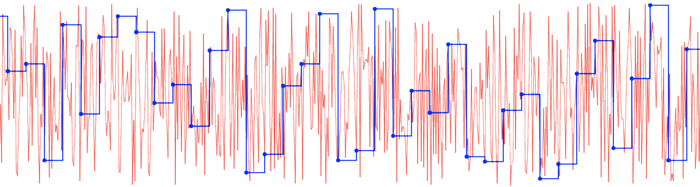

A particularly interesting extension to LFO modulation is Sample and Hold. This works by sampling an incoming signal at regular intervals, and holding the value constant in between samples. If the sample rate is high compared to an incoming signal, this acts to reduce the resolution and outputs a quantised (or stepped) version of the input signal.

Often the input signal is white noise, creating a stepped random output as shown in the figure below.

Use the following app to see how an output signal so produced can be used to modulate pitch or cut-off in the same way as any other LFO waveshape.

Sample and Hold

6.8 Project 9: LFO Shapes

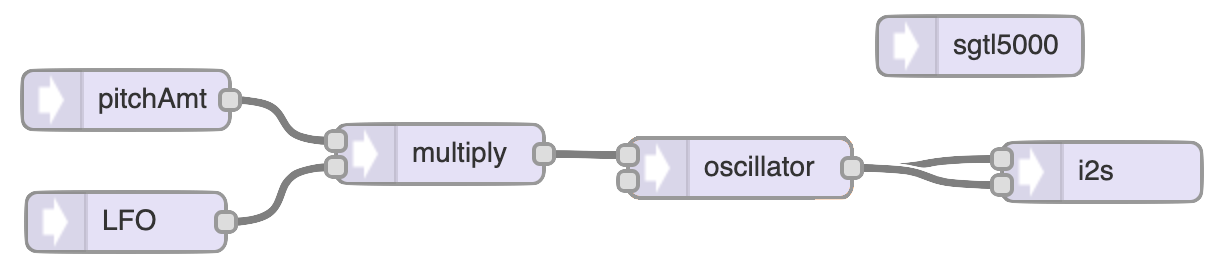

For this Teensy project we will re-use the pitch modulation approach from earlier in this chapter.

However, instead of using the second potentiometer to change the oscillator waveshape, it will instead change the shape of the modulating waveform produced by the LFO (and the oscillator waveshape will stay fixed as a sawtooth wave). The code supports 6 different LFO waveshapes — the standard 5 LFO waveshapes of sine, triangle, sawtooth, ramp and square, as well as sample and hold.

As in the previous project, the 3rd potentiometer controls the LFO rate and 4th controls the modulation amount.

Show Teensy code

   #include <math.h>

   #include <Audio.h>
   #include <Wire.h>
   #include <SPI.h>
   #include <SD.h>
   #include <SerialFlash.h>

   // GUItool: begin automatically generated code
   AudioSynthWaveformDc     pitchAmt;       //xy=107,193
   AudioSynthWaveform       LFO;            //xy=107,254
   AudioEffectMultiply      multiply;       //xy=264,220
   AudioSynthWaveformModulated oscillator;     //xy=414,227
   AudioOutputI2S           i2s;            //xy=595,229
   AudioConnection          patchCord1(pitchAmt, 0, multiply, 0);
   AudioConnection          patchCord2(LFO, 0, multiply, 1);
   AudioConnection          patchCord3(multiply, 0, oscillator, 0);
   AudioConnection          patchCord4(oscillator, 0, i2s, 0);
   AudioConnection          patchCord5(oscillator, 0, i2s, 1);
   AudioControlSGTL5000     sgtl5000;       //xy=534,166
   // GUItool: end automatically generated code

   #define PITCH_POT A0
   #define SHAPE_POT A1
   #define RATE_POT A2
   #define AMOUNT_POT A3

   #define LED 3

   // map our wavetype to teensy waveform
   int shapes[] = {
       WAVEFORM_SINE, WAVEFORM_TRIANGLE, WAVEFORM_SAWTOOTH,
       WAVEFORM_SAWTOOTH_REVERSE, WAVEFORM_SQUARE, WAVEFORM_SAMPLE_HOLD
   };

   #define N_TYPES 6

   int pitch = 220;
   int shape = 0;
   int rate = 0;
   int amount = 0;

   bool ledstate = false;  // toggle LED to give feedback for shape changes

   // pitch scales logarithmically
   float inputToPitch(int input)
   {
       int n = map(input, 0, 1023, 21, 108);
       return 440 * pow(2, (n - 69) / 12.0);
   }

   int getShapeFromValue(int inputValue)
   {
       return map(inputValue, 0, 1023, 0, N_TYPES - 1);
   }

   void setLFORate(int u)
   {
   // convert log scale 0 to 127 to a linear rate
   // f(1) = 0.5Hz, f(127) = 40Hz
       float f = exp(u / 25.0) / 4.0;
       LFO.frequency(f);
   }

   void setup()
   {
       // reserve some memory for the audio functions
       AudioMemory(20);
       // enable the audio control chip on the Audio Shield
       sgtl5000.enable();
       sgtl5000.volume(0.5);

       // setup the two pins for listening to the pitch and amplitude controls
       pinMode(PITCH_POT, INPUT);
       pinMode(SHAPE_POT, INPUT);
       pinMode(RATE_POT, INPUT);
       pinMode(AMOUNT_POT, INPUT);

       pinMode(LED, OUTPUT);

       // configure and start the oscillator object
       oscillator.amplitude(0.5);
       oscillator.frequency(pitch);
       oscillator.begin(WAVEFORM_SAWTOOTH);
       oscillator.frequencyModulation(1);

       setLFORate(rate);
       LFO.amplitude(1);
       shape = getShapeFromValue(analogRead(SHAPE_POT));
       LFO.begin(shape);
   }

   void loop()
   {
       // read the pitch pot position
       int newpitch = analogRead(PITCH_POT);
       // has it changed?
       if (newpitch != pitch)
       {
           // update if it has
           pitch = newpitch;
           oscillator.frequency(inputToPitch(newpitch));
       }

       // read the wavetype pot position
       int v = analogRead(SHAPE_POT);
       int newshape = getShapeFromValue(v);
       // has it changed?
       if (newshape != shape)
       {
           // update if it has
           shape = newshape;
           LFO.begin(shapes[shape]);
           digitalWrite(LED, ledstate);
           ledstate = !ledstate;
       }

       // read the cutoff pot position
       int newrate = analogRead(RATE_POT) >> 3;
       // has it changed?
       if (newrate != rate)
       {
           // update if it has
           rate = newrate;
           setLFORate(rate);
       }

       // read the cutoff pot position
       int newamount = analogRead(AMOUNT_POT) >> 3;
       // has it changed?
       if (newamount != amount)
       {
           // update if it has
           amount = newamount;
           pitchAmt.amplitude(amount / 127.0);
       }
   }

6.9 Summary

Glossary

Modulator
A component that introduces a time-dependent change to an existing signal.
Amount
The amplitude of the low frequency modulation for a given parameter.
Bipolar
Describes an LFO that oscillates between a positive value and its negative opposite, resulting in modulation of an equal amount in each direction.
Unipolar
Describes an LFO that oscillates between a positive value and zero, with resulting modulation in one direction only.
Vibrato
Slow modulation of oscillator pitch.
Tremolo
Slow modulation of oscillator amplitude.
Sample and Hold
Create an output signal by sampling an incoming signal (often white noise) at regular intervals, and holding the value constant in between samples.

7 The Amplifier

As can be seen in our generic synthesiser module diagram, the Amplifier is the component where the outputs of all the previous components converge. The primary signal generated by the oscillator has been filtered and modulated, and now it needs its loudness applied.

In chapter 5 we learned about the amplitude envelope. This is the point at which it is applied, along with any additional loudness modulations, e.g. cyclic modulation by the LFO.

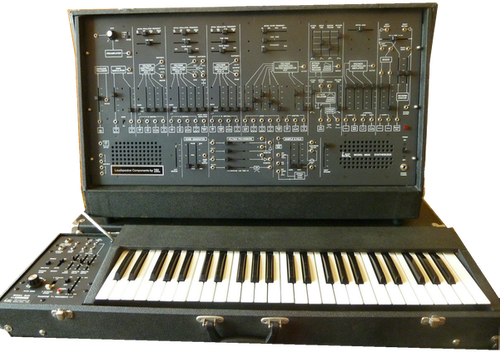

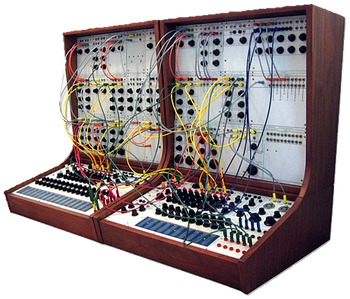

It is actually a bit of a misnomer to call this component an amplifier, since it also attenuates. In fact, attenuation is often it’s most significant task. Nevertheless, when building a synth, care must be taken to ensure the signal is clean in all earlier stages, specifically that there is no overloading leading to the harshly distorted audio resulting from clipping. The amplifier can then be used to raise the volume to the level required for effect input and audio output.

The amplifier component in a synthesiser will often support switching between an unshaped output signal, where the loudness simply follows the gate (so, like an organ, the sound is at maximum level while a key is pressed and silent at other times), or the envelope-shaped signal.

7.1 LFO Amplitude Modulation

In the same way that an LFO can be used to modulate pitch and/or filter cut-off (as we saw in the previous chapter), the LFO output can be applied to the amplifier input signal and thus cyclically modulate the loudness. (This kind of interoperability is a key feature of modular synthesisers in particular, where the user is responsible for manually constructing with physical cables all signal paths.)

Use the app below to see and hear the result of modulating the signal amplitude to different degrees, and with different LFO shapes.

Amplitude Modulation

7.2 Ring Modulation

Another form of amplitude modulation that is often provided in a synthesiser is ring modulation.

Consider the product of two sine waves — a carrier of frequency \(f\) and a modulator of frequency \(g\). Using the identity

\[\sin(f)\sin(g)=\frac{\cos(f-g)-\cos(f+g)}{2}\]

we see that the result is a combination of two new sine waves (\(\cos(x)\) is just \(\sin(x)\) phase shifted by 90 degrees), with frequencies given by the sum and the difference of the original two frequencies. Note especially that neither of the original frequencies is present in the output, and only in special cases will the two output frequencies be in harmonic relationship.

The effect on the waveshape is as shown in the following figure.

An example of a basic ring modulation using sine waves.

For other waveshapes the same thing happens: here is an example involving a square wave carrier modulated by a triangle wave.

A triangle wave ring modulating a square wave of 12 times higher frequency.

Although these two figures appear quite similar, the situation in the second example is actually far more complex, since every single harmonic in the carrier wave is split in two by every single harmonic in the modulating wave. When neither the carrier nor the modulator is a sine wave, this process creates an extraordinarily rich array of harmonics in the output wave.

Ring modulation with more complex waves generates many additional harmonics.

This kind of modulation is known as ring modulation and can produce marvellous raspy inharmonic, metallic, and robotic effects. Indeed, this is the process used to generate the famous Dalek voices from Doctor Who. Use the following app to explore the incredible range of waveforms that can be generated in this way.

Ring Modulation

7.3 Summary

Glossary

Clipping
When a signal goes over the maximum supported amplitude, the wave form is truncated and harsh audio artefacts are introduced.
Modular Synthesiser
A synthesiser composed of independent modules, where the user must use physical cables to manually create all signal paths.
Ring Modulation
Multiplying two signals to produce an output that contains the sum and difference of their frequencies as harmonics.

8 Effects

In some respects it might be more reasonable to consider the Effects component as being external to the synthesiser proper, since audio effects are essentially modifications of a fully generated signal that can quite satisfactorily stand on its own. Yet, since an effects module is part of most modern synthesisers, and the sounds they produce are integral to a modern understanding of synthesis, I am including them as part of our generic synthesiser and approach to subtractive synthesis.

Many effects had their genesis in physical devices - e.g. physically interfering with tape reels, echo chambers, overdriving amplifiers etc. But, with the advent of digital technology, the breadth and power of the available effects, and the degree of control possible, has increased massively.

An effect adjusted signal, known as the wet signal, is often mixed back with the original signal, known as the dry signal, to make an adjustable balance.

8.1 Portamento

Portamento is a smooth glide of the frequency between one note and the next — a very simple effect that was a common feature of many of the earliest synthesisers. Since this was quite a novel effect for a keyboard instrument, it became strongly identified with the classic monophonic electronic sound. The rate of frequency change is generally adjustable, and portamento is regularly used to add expression to an otherwise discrete melody line.

Portamento

8.2 Reverb

When a sound is made in a 3D space, the waves propagate in all directions, reflecting off the various surfaces in the space until they lose all their energy and decay to zero. A listener will hear the original (dry) sound, followed by the many reflections (the wet sound) very slightly delayed. The net effect is perceived as a single sound with reverb.

Synthesisers reproduce this effect digitally, using algorithms based on specific physical models. Hence the reverb effect will often be described in terms such as hall, room, plate, or spring (sometimes using a physical spring to produce).

The effect can be shaped using various parameters, such as:

The following app adds a simple reverb effect to the Four Tone Organ from chapter 1.

Reverb

8.3 Delay

A delay is also an echo effect, but unlike reverb it is without any sense of space. The effect can have many layers, from a signal being mixed with a delayed copy of itself, to several delayed copies at different times and levels.

A useful trick is to add some feedback, so, just like your reflection when standing between two mirrors, each delay is delaying the original signal plus the delay, and so on.

The delay with feedback approach is used in the following app. You can control the delay time and level of feedback and hear the difference in outcome. It is also interesting to hear how delay interacts with the other modulations we discussed earlier, so this app also supports LFO modulation of the filter cut-off.

Delay

8.4 Chorus, Flanger, Phaser

A very popular class of effects arises from mixing a signal with a delayed version of itself, and modulating the delay with an LFO.

The first such effect we will look at is a chorus, where the signal flow is as shown in the diagram below. (The delay time and LFO rate values shown are indicative only, but serve to help differentiate this effect from those that follow.)

The signal flow for a chorus effect

You can see that the chorus effect is generated precisely as described above — mix the input signal with a delayed copy of itself, while slowly modulating the delay time (between say 20ms and 50ms) with an LFO. The result is a pleasing ambience, suggesting multiple instruments or voices separated in space, and thus heard at slightly different times.

If we reduce the delay time to 20ms or less, slow the modulation even further, and add in an adjustable feedback, we get a flanger effect. (This effect is so named since it originated by pressing on the rim of a tape reel.)

The signal flow for a flanger effect

To produce a third related effect, the delay in the flanger can be replaced by a series of all-pass filters. These filters allow all frequencies through, but as we saw in chapter 4, introduce phase shifting in the signal that in turn produces a frequency-dependent enhancement and attenuation amongst the harmonics when the original signal is added back in. This effect is called a phaser, and a slow LFO modulating the all-pass filter frequency introduces its characteristic cycling phasing effect.

The signal flow for a phaser effect

One way to consistently parameterise the control of these three effects is:

The following app supports controlling these effects using these three parameters.

Chorus, Flanger, Phaser

8.5 Distortion

Distortion, in general, is something to be avoided, since it constitutes a degradation of the audio signal. Low quality equipment, poor connections, or levels too high can all introduce distortion to an audio signal that will manifest itself as a raspy, noisy output sound.

Nevertheless, it is sometimes desirable to add some distortion in a controlled way to generate a particular sound. Specifically, it can be used to add harshness or warmth depending on the nature and level of the distortion.

In particular, overdrive will push a signal beyond the supported voltage limits leading to clipping where the peaks of the waves are truncated. The sharp edges this causes introduce or enhance higher frequency components and lead to distortion in the sound.

When first looking at waveshapes way back in chapter 1, we saw how moving from sine to triangle to square to sawtooth waveshapes increased the harshness of the tone as the higher frequency harmonics became more prevalent. Increasing the higher frequency harmonics even further exaggerates this effect, and doing so on a signal is thus a source of controlled distortion.

The following app lets you do exactly this; increase the level of the higher harmonics already present in the signal (except in the case of a pure sine wave) and listen to the increasing distortion that results. The effect on the wave shape and the spectrum is also shown.

Distortion

8.6 Project 10: Delay Effect

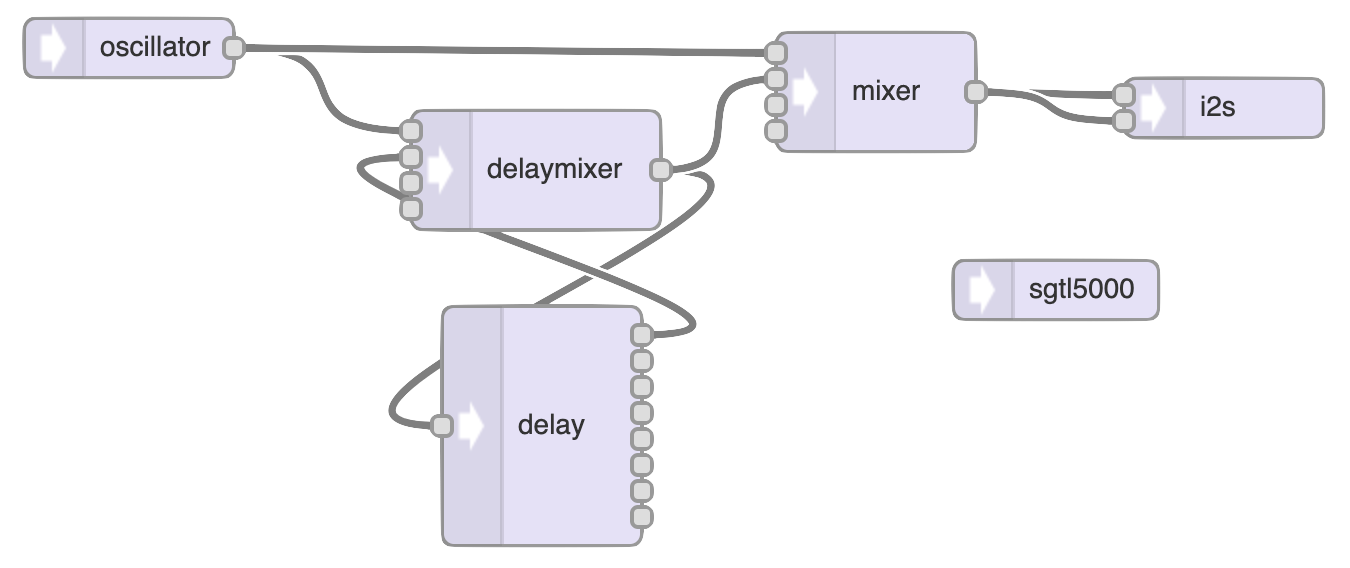

The Teensy Audio Library comes with a large number of effects that can be inserted directly into the signal path. For this final Teensy project, we will use the delay effect object in a more complicated arrangement involving feedback as shown below.

As above, we will control the delay using the three parameters: level, speed and depth, so this uses 3 of our 4 potentiometers. The remaining potentiometer (the code uses potentiometer 1) can then be used to select a wavetype. The button is not used.

Show Teensy code

   #include <math.h>
   #include "MIDI.h"

   #include <Audio.h>
   #include <Wire.h>
   #include <SPI.h>
   #include <SD.h>
   #include <SerialFlash.h>

   // GUItool: begin automatically generated code
   AudioSynthWaveform       oscillator;     //xy=146.5,227
   AudioMixer4              delaymixer;         //xy=350,288
   AudioEffectDelay         delayeff;         //xy=353,416
   AudioMixer4              mixer; //xy=520,249
   AudioOutputI2S           i2s;            //xy=694,257
   AudioConnection          patchCord1(oscillator, 0, delaymixer, 0);
   AudioConnection          patchCord2(oscillator, 0, mixer, 0);
   AudioConnection          patchCord3(delaymixer, delayeff);
   AudioConnection          patchCord4(delaymixer, 0, mixer, 1);
   AudioConnection          patchCord5(delayeff, 0, delaymixer, 1);
   AudioConnection          patchCord6(mixer, 0, i2s, 0);
   AudioConnection          patchCord7(mixer, 0, i2s, 1);
   AudioControlSGTL5000     sgtl5000;       //xy=610,348
   // GUItool: end automatically generated code

   #define WAVETYPE_POT A0
   #define DELAY_LVL_POT A1
   #define DELAY_TIME_POT A2
   #define DELAY_FB_POT A3

   typedef enum
   {
       SINE, TRIANGLE, SAWTOOTH, SQUARE, PULSE_25, PULSE_10
   } wavetype;

   int wavetypes[] = {
       WAVEFORM_SINE, WAVEFORM_TRIANGLE, WAVEFORM_SAWTOOTH,
       WAVEFORM_SQUARE, WAVEFORM_PULSE, WAVEFORM_PULSE
   };

   #define N_TYPES 6

   float volume = 0.5;
   int pitch = 220;
   int curnote = 0;
   wavetype waveform = (wavetype)100;  // illegal value guarantees update on first loop

   int delaylevel = 0;
   int delaytime = 500;  // millis
   int delayfeedback = 63;

   // Define the callbacks for handling MIDI note on and note off messages
   void handleNoteOn(byte channel, byte pitch, byte velocity);
   void handleNoteOff(byte channel, byte pitch, byte velocity);

   // Create a hardware MIDI instance on Serial1 (pins 1 and 2)
   MIDI_CREATE_INSTANCE(HardwareSerial, Serial1, MIDI);

   // pitch scales logarithmically
   float inputToPitch(int n)
   {
       return 440 * pow(2, (n - 69) / 12.0);
   }

   wavetype getWaveTypeFromValue(int inputValue)
   {
       int n = map(inputValue, 0, 1023, 0, N_TYPES - 1);
       return (wavetype)n;
   }

   void playNote(bool updateWaveType)
   {
       if (updateWaveType)
       {
           oscillator.begin(wavetypes[waveform]);
           if (waveform == PULSE_25)
               oscillator.pulseWidth(0.25);
           else if (waveform == PULSE_10)
               oscillator.pulseWidth(0.1);
           else    // just to be safe
               oscillator.pulseWidth(0.5);
       }
       if (curnote)
       {
           oscillator.amplitude(volume);
           oscillator.frequency(inputToPitch(curnote));
       }
   }

   void handleNoteOn(byte channel, byte pitch, byte velocity)
   {
       // set the current active note
       curnote = pitch;
       playNote(false);
   }

   void handleNoteOff(byte channel, byte pitch, byte velocity)
   {
       if (pitch == curnote)
       {
           // turn off the oscillator because the active note has been lifted
           oscillator.amplitude(0);
           curnote = 0;
       }
   }

   void setup()
   {
       // reserve some memory for the audio functions
       // need alot of extra memory for a delay effect
       AudioMemory(400);
       // enable the audio control chip on the Audio Shield
       sgtl5000.enable();
       sgtl5000.volume(0.5);

       // setup the two pins for listening to the range and wavetype controls
       pinMode(WAVETYPE_POT, INPUT);
       pinMode(DELAY_LVL_POT, INPUT);
       pinMode(DELAY_TIME_POT, INPUT);
       pinMode(DELAY_FB_POT, INPUT);

       // Setup the MIDI listening on channel 1
       MIDI.begin(1);
       MIDI.setHandleNoteOn(handleNoteOn);
       MIDI.setHandleNoteOff(handleNoteOff);

       delaylevel = 0.5;
       delayeff.delay(0, delaytime);
       delaymixer.gain(0, 0.75);
       delaymixer.gain(1, delayfeedback / 127.0);
       mixer.gain(0, 1 - delaylevel / 127.0);
       mixer.gain(1, delaylevel / 127.0);
   }

   void loop()
   {
       // read the delay level pot position
       int newlevel = analogRead(DELAY_LVL_POT) >> 3;
       // has it changed?
       if (newlevel != delaylevel)
       {
           // update if it has
           delaylevel = newlevel;
           mixer.gain(0, 1 - delaylevel / 127.0);
           mixer.gain(1, delaylevel / 127.0);
       }

       // read the delay time pot position
       int newtime = analogRead(DELAY_TIME_POT) ; // up to 1s (well just over)
       // has it changed by at least 20ms?
       // (really need to avoid jitter here because it will have significant audible consequences)
       if (abs(newtime - delaytime) > 20)
       {
           // update if it has
           delaytime = newtime;
           delayeff.delay(0, delaytime);
       }

       // read the delay feedback pot position
       int newfeedback = analogRead(DELAY_FB_POT) >> 3;
       // has it changed?
       if (newfeedback != delayfeedback)
       {
           // update if it has
           delayfeedback = newfeedback;
           delaymixer.gain(1, delayfeedback / 127.0);
       }

       // read the wavetype pot position
       int v = analogRead(WAVETYPE_POT);
       wavetype newwave = getWaveTypeFromValue(v);
       // has it changed?
       if (newwave != waveform)
       {
           // update if it has
           waveform = newwave;
           playNote(true);
       }

       // check for MIDI messages (the callbacks will handle them if there are any)
       MIDI.read();
   }

8.7 Summary

Glossary

Audio Effect
Any creative manipulation of an input sound.
Portamento
A smooth frequency glide when changing from one note to the next.
Wet signal:
An audio signal with an effect applied.
Dry signal:
An audio signal without an effect applied.
Reverb
The effect that results from a sound echoing in space.
Delay
Record and play back a signal after a specific period of time.
Chorus
Add an effect to simulate multiple identical sources separated in space.
Flanger
Add a delayed signal with feedback into the original signal, with a slow modulation of the delay.
Phaser
Use oscillating phase cancellation to filter various parts of a signal’s spectrum.
Distortion
Add harshness or grit to a signal by amplifying the higher harmonics.
Overdrive
Drive a signal beyond its limits so that the clipping occurs, adding harshness to the signal.

9 Introducing Mentor

Now we’ve looked at all the necessary modules to make a subtractive synthesiser, and how to build and control them using a Teensy and a breadboard, it’s time to put it all together and build a complete polyphonic synthesiser.

In this chapter we will look at a single board synthesiser kit based on a Teensy 4.0 and Teensy Audio Shield, called Mentor, due to it’s focus as an instrument for learning subtractive synthesis.

All circuit and firmware source files are available here.

9.1 Specifications

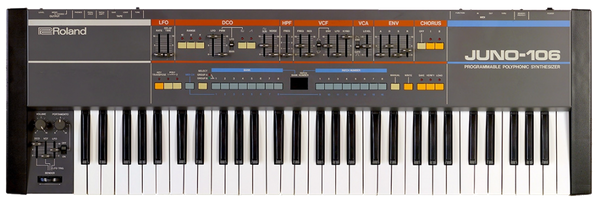

Mentor is a 16 voice polyphonic synthesiser, with an architecture that matches exactly the 6 module structure we have been working through.

It features a 6x4 control matrix, with each row corresponding to one of the modules: Oscillator, Filter, Envelope, LFO, Amplifier and Effects, and a ‘Select’ encoder for selecting between them. Four additional encoders are provided for setting the parameters relevant to the selected module, and an LCD gives feedback on the parameters under adjustment.

The final encoder is used to manage presets and system settings, and can also be used for any custom extensions made to the firmware.

The full specifications are shown in the following table:

Oscillator

  • 16 voices arranged as 16 single oscillator voices, 8 dual oscillator, 4 4-oscillator, 2 8-oscillator or 1 16-oscillator voice.
  • Waveshapes supported are triangle, sawtooth, square, and variable pulse, or any arbitrary triangle-sawtooth or sawtooth-square combination.
  • 32’, 16’, 8’ and 4’ ranges.
  • When multiple oscillator voices are used, they are detunable +/-50 cents.

Filter

  • Resonant 12db/oct low pass filter.
  • 12dB/oct high pass filter.
  • Modulation amount for envelope driven cut-off shaping.

Envelope

  • A single ADSR envelope for both amplitude and filter.

LFO

  • Supported shapes: sine, triangle, square, sawtooth, ramp, sample-and-hold.
  • Modulation amount for pitch.
  • Modulation amount for filter cut-off frequency.

Amplifier

  • Mixable gated and envelope-shaped levels.
  • LFO modulation of level.
  • Adjustable velocity sensitivity for incoming MIDI notes.

Effects

  • Chorus, delay, reverb and overdrive, each with individual levels from 0 to 15.

Presets

  • INIT plus 11 additional ROM presets.
  • Settings randomiser.
  • 10 slots for saving user settings.

MIDI

  • Note on/off
  • Mod wheel
  • Sustain pedal
  • Aftertouch
  • Control change
  • Program select
  • Clock out/sync in

A special drone/noise-maker mode is available where the synth will produce a continuous note with (quasi)continuously adjustable frequency. This is useful for experimenting with sounds, and for making sound effects.

Three further ‘Demo’ modes are provided, one consisting of a repeating chord, another a simple looping monophonic melody, and the third a simple looping polyphonic tune. These are similarly useful for experimenting with settings without having to play a keyboard, or even have one attached.

9.2 Firmware

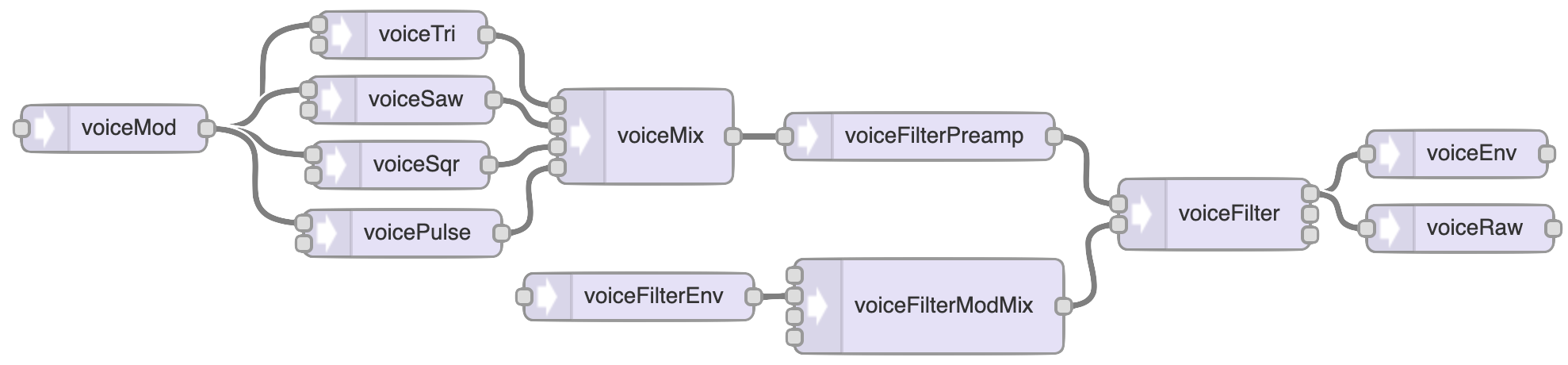

Each of the 16 voices has the following structure — a separate oscillator for each supported waveshape, plus a mixer to combine them (voiceMixer), a low pass filter (voiceFilter), and dual outputs, one with envelope-shaping (voiceEnv) and one that is simply on or off (voiceRaw). Individual Mentor voice structure

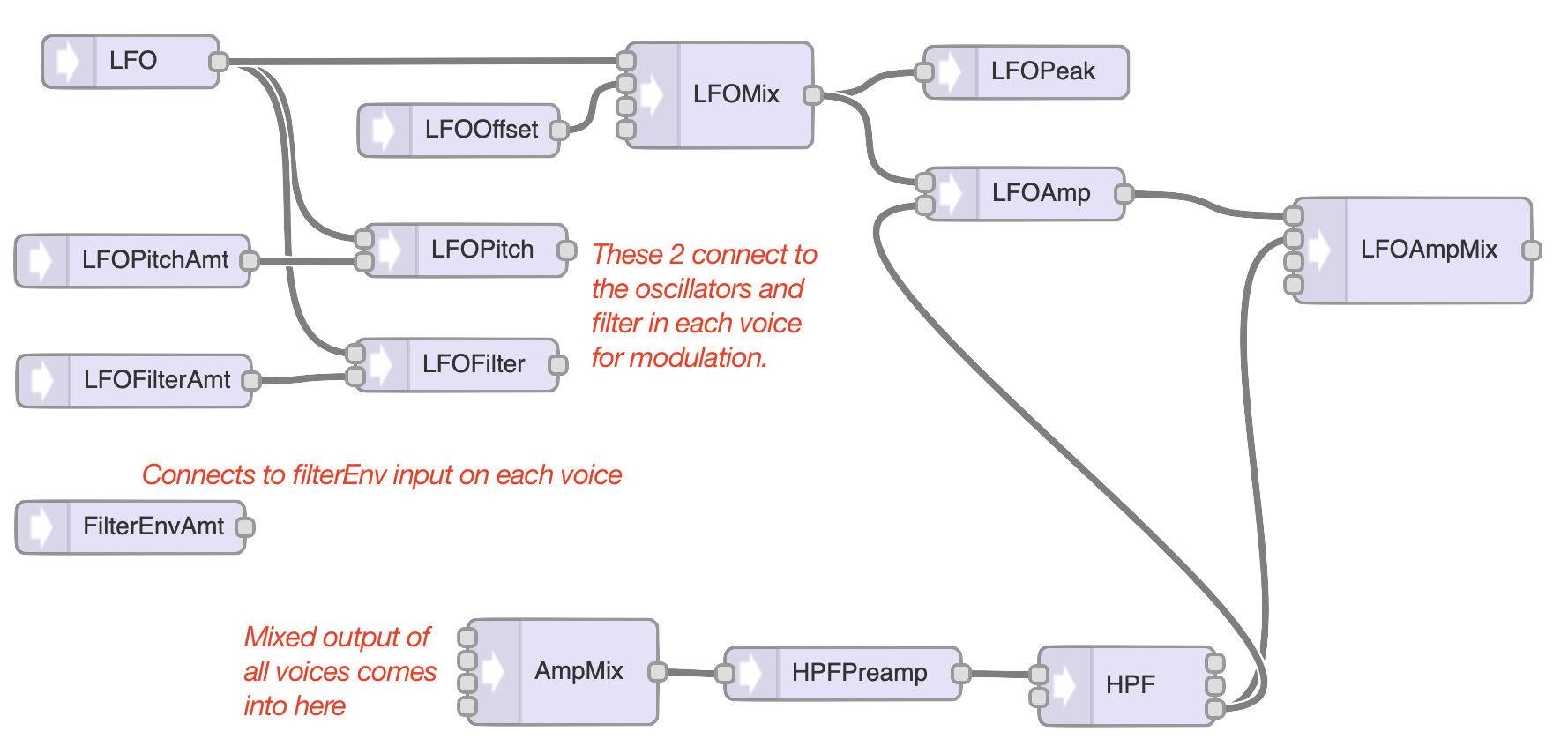

The voices integrate with the top-level synth modules — the high pass filter (HPF), the LFO and its pitch and filter amount controllers, before mixing prior to being sent to the effects. Top level synth and voice integration structure

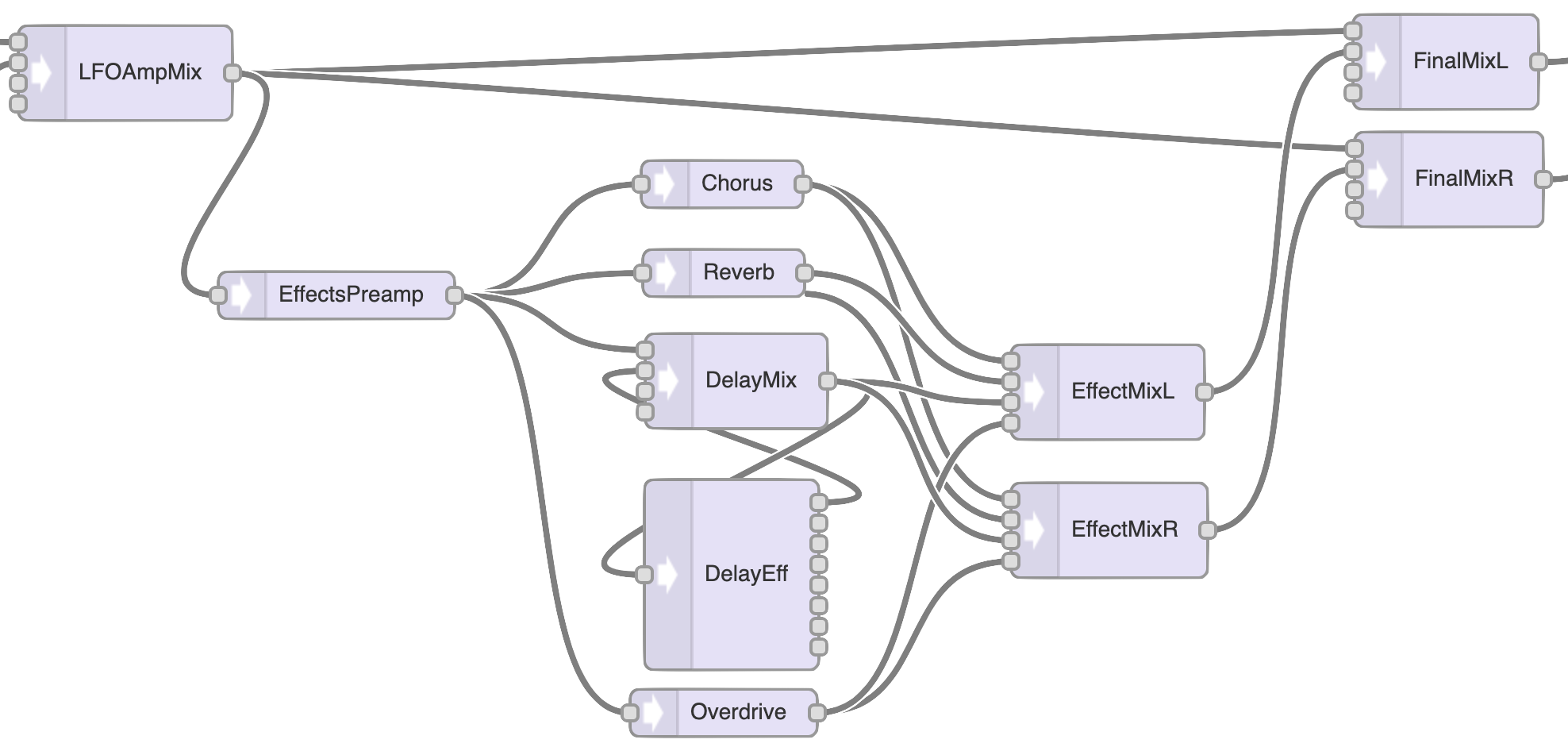

The final set of objects and connections manage both the direct output and the output that passes through the reverb, chorus, delay and overdrive effects, prior to final mixing. Mentor effects and final output components

9.3 The Control Encoder

The Control encoder is for presets and system parameters. Specifically, it allows you to:

Rotate the encoder until the LCD shows the setting to adjust, then click and rotate to see the allowed values, before selecting one with a further click. The first option is always ‘Cancel’ for making no change.

9.4 The Control Matrix

As mentioned above, each row of the control matrix corresponds to one of the modules: Oscillator, Filter, Envelope, LFO, Amplifier or Effects, and four encoders are provided for setting the parameters relevant to each module.

The ‘Select’ encoder is for selecting a particular row, with a LED indicating the current selection, and the LCD shows a 4 value summary indicating the current settings for the module — each value being the current setting for the encoder in the corresponding position.

When a parameter is being changed, the LCD also displays the changing value in detail.

The Mentor control matrix

9.5 Oscillator Settings

The oscillator controls
Shape
Continuously change the waveshape from triangle to sawtooth to square, and then an increasingly narrow pulse.
Range
Normally this control will select an octave range from 32’, 16’, 8’ and 4’. In noisemaker mode (i.e. when the demo mode is playing a constant, single note) this control changes the note frequency in 25 cent steps.
Poly
Set the maximum polyphony — the 16 voices are allocated evenly across the allowed polyphony values of 16, 8, 4, 2, 1.
Detune
Sets the frequency spread among unison voices, up to +/-50 cents.

9.6 Filter Settings

The filter controls
Cut-off
The cut-off frequency for the low pass filter, increasing exponentially from 25Hz to 6kHz.
Res
The low pass filter resonance level.
Env amt
The amount of filter cut-off modulation from the envelope.
HPF
The cut-off frequency for the high pass filter, also increasing exponentially from 25Hz to 6kHz.

9.7 Envelope Settings

The envelope controls
Attack
The ADSR envelope attack time.
Decay
The ADSR envelope decay time.
Sustain
The ADSR envelope sustain level.
Release
The ADSR envelope release time.

9.8 LFO Settings

The LFO controls
Shape
Choose the LFO shape from sine, triangle, square, sawtooth, ramp, and sample and hold options.
Rate
Adjust the LFO frequency between 0.1Hz to 80Hz. (The associated LED flashes to indicate the speed.)
Pitch
Set the pitch LFO modulation amount.
Filter
Set the filter cut-off LFO modulation amount.

9.9 Amplifier Settings

The amplifier controls
Gain
Set the gated (i.e. unshaped) output level.
Env amt
Set the envelope-shaped output level.
LFO amt
Set the amount of LFO modulation of the output level.
Vel sens
Set the amount of velocity sensitivity for incoming MIDI notes.

9.10 Effects Settings

The effect controls
Chorus
Set the amount of chorus to mix in to the final output.
Delay
Set the amount of delay to mix in to the final output.
Reverb
Set the amount of reverb to mix in to the final output.
Overdrive
Set the amount of overdrive to mix in to the final output.

10 Mentor Patch Presets

Mentor includes a bank of 12 sample presets in memory. The first preset is a basic initialisation patch, and the others are designed to provide a useful starting point for a range of standard synthesiser sounds.

Below I will briefly describe the patch creation process in each case, going through the settings I chose and the reasons why.

10.1 INIT

The INIT preset is a basic unmodulated and unshaped sawtooth wave, and provides a handy way to quickly reset the parameters.

Osc [Sawtooth, 8’, 8, 0]
A sawtooth wave, with 8 note polyphony, a standard 8’ range, and no detuning.
Filter [127, 0, 0, 0]
Low pass cutoff at maximum, no resonance, modulation or high pass filtering.
Env [0, 0, 127, 0]
Gated envelope only, i.e. maximum amplitude when a key is pressed, and zero otherwise.
LFO [Tri, 0, 0, 0]
The LFO shape is set to the most generally useful shape of triangle, and all modulation is off.
Amp [0, 127, 0, 64]
All output is via the envelope, and the velocity sensitivity is set to the midpoint value of 64.
Effects [0, 0, 0, 0]
All effects off.

10.2 Strings

One of the staple sounds of any polyphonic synthesiser is strings, giving it the ability to reproduce the lush overlay of an orchestral string section.

Osc [Tri43/Saw57, 8’, 8, 10]
To make a string sound, start close to a sawtooth wave as the best representative of the harmonics in the target sound, but soften it by mixing in some triangle wave. Choose a polyphony that supports sufficiently big chords while still giving a good thick texture for each note. Then, to reproduce the smooth sound that arises from the combination of many different players, add in some detuning — a level of 10 cents works well since it is enough to get the desired texture but does not compromise the overall tuning.
Filter [100, 0, 50, 0]
Further smoothing is obtained by cutting out the higher frequencies with a moderate to high filter cut-off, but a static filter is not very effective for this sound. Some shape can be introduced by setting the envelope amount to 50, making the filter open and close through the duration of the note.
Env [15, 0, 127, 20]
Setting the attack for a fast but noticeable rise makes for a slow strings effect, but remains fast enough to support a melody. Similarly, a slight release lets the note gently fade without chords becoming too muddy. (Remember also that the envelope is linked to the filter via the env amount, so these values also affect the filter output.) Decay and sustain are left at their default values for this patch.
LFO [Tri, 0, 0, 0]
The LFO is not used in this patch. Nevertheless, by introducing some vibrato via the pitch amount, or more dynamics to the filter via the filter amount, nice, subtle changes can be introduced to the nature of the sound.

Listen to a sample: Strings

10.3 Brass

Another polyphonic staple is a generic brass ensemble sound.

Osc [Tri37/Saw63, 16’, 8, 0]
Again use a predominately sawtooth wave with triangle mixed in, this time a little more sawtooth than for the strings to make the sound a little rougher. As for the strings patch, 8-voice polyphony best captures ensemble requirements of the target sound. Choose the 16ft range setting to give a deeper feel to the sound, and do not detune.
Filter [86, 0, 30, 20]
A moderate cut-off frequency reduces the higher frequency harmonics, and a similarly moderate envelope amount provides a nice evolution of the filter through the note duration. Additionally, some high pass filtering helps remove muddiness in the sound.
Env [10, 59, 73, 5]
A noticeable attack is appropriate for a brass ensemble, but it should be quite fast. Then a moderate decay rate to a sustain level substantially below the maximum level, before a very brief release.
LFO [Tri, 54, 3, 0]
A triangle LFO with a small pitch amount introduces a very slight vibrato.
Effects [13, 0, 0, 0]
Add chorus or reverb as desired.

Listen to a sample: Brass

10.4 Solo Brass

For our first solo preset, we again make a brass sound. It is interesting to consider the difference in settings between a sound that is reminiscent of an ensemble of similar instruments, and any of them in solo.

Osc [Tri10/Saw90, 4’, 1, 0]
When making a solo brass sound not so much softening is required, so less triangle is mixed in than for the brass ensemble. Using a higher frequency range makes for a trumpet-like sound, and since this is for a solo instrument, the polyphony is set to unison.
Filter [40, 70, 63, 0]
The oscillator settings produce quite a high sound, so a low-ish filter cut-off is a good choice. A significant resonance setting helps add some of the sonic artifacts of the blowing, and with the envelope amount set to its maximum value, the dynamical feel of an individual instrument is reproduced.
Env [8, 59, 73, 5]
The envelope is essentially the same as for the brass ensemble, except it is good to set the attack a little faster for a single instrument sound.
LFO [Tri, 62, 3, 0]
The LFO settings are also essentially as for the ensemble, but the rate is slightly higher.
Amp [0, 30, 0, 64]
The default uses a fairly low env gain, but this is easily adjusted to suit.
Effects [13, 0, 0, 0]
Add chorus or reverb as desired.

Listen to a sample: Solo Brass

10.5 Wobble

This next preset is our first unambiguously ‘electronic’ sound, i.e. an useful and interesting sound in its own right, and not an attempt to reproduce features of any particular traditional instrument.

Osc [Tri37/Saw63, 4’, 1, 0]
This sound is based on a nice, harmonic rich waveshape combination of triangle and sawtooth waves. The wobble effect does not work well for large chords, but it is handy to support multiple notes, so 4 note polyphony is a good balance, with a slight detune to introduce some interplay between the voices when notes are held.
Filter [96, 62, 34, 31]
The filter cut-off level is not too drastic and still leaves plenty of room for modulation, plus some resonance to bring in some extra electronic feel. A moderate env amount helps accentuate held note development (especially with the slight detune), and the high pass filter thins everything out.
Env [0, 29, 109, 15]
Setting the attack to instantaneous makes the sound punchy, and the fairly fast decay to a slightly reduced sustain level emphasises the shaping. The envelope is rounded out with a small release value.
LFO [Ramp, 86, 4, 52]
Using a ramp waveshape for the LFO further emphasises the punchiness of this patch, and the fast rate with some pitch amount gives some wobble to the note. The driving force behind the sound is achieved with a significant filter amount setting, but there is plenty of room to make it even stronger.
Effects [0, 0, 10, 0]
Add chorus or reverb as desired.

Listen to a sample: Wobble

10.6 Smooth Bass

Synthesisers are regularly used to add bass. This preset is for a deep, smooth bass line.

Osc [Saw82/Sqr18, 16’, 2, 1]
To keep some edginess in the sound, a waveshape combination of 82% sawtooth and 18% square is used as the foundation, with the deeper 16ft range. A polyphony of 2 means two notes can be played simultaneously, but with 8 voices per note and a tiny 1 cent detune there is a nice resonance to the tone.
Filter [41, 0, 63, 0]
Since this is a bass sound, the filter cut-off is quite low, and there is no high pass filtering. The envelope shaping is at the maximum value to support maximum filter variation with the envelope.
Env [1, 110, 0, 20]
Setting the attack to 1 means no real delay to the note reaching its maximum amplitude, but since it is above 0 it still smooths the transition and removes any clickiness. Since this sound is emulating a plucked string, there is no sustain, but adding some release works well.
LFO [Tri, 30, 0, 20]
A slow triangle is used to subtly modulate the filter.
Amp [0, 50, 76, 64]
To add an interesting dynamic element to the sound, the amplifier envelope amount is reduced and supplemented by LFO-driven amplitude modulation.
Effects [10, 0, 0, 0]
Add chorus or reverb as desired.

Listen to a sample: Smooth Bass

10.7 Dirty Bass

A common alternative synthesiser bass is an even deeper and harsher sound.

Osc [Tri37/Saw63, 32’, 2, 1]
This is another patch that uses a 1:2 mix of triangle and sawtooth, but the range is right down at the deepest 32ft range. Polyphony and detune are as for the smooth bass patch above.
Filter [112, 57, -15, 0]
Given the 32ft range, the filter cut-off does not need to be too low, and we want to retain plenty of harshness. Resonance and particularly a negative envelope amount add some character to the sound.
Env [0, 50, 0, 20]
No attack or sustain, and just a small release time.
LFO [Tri, 88, 5, 0]
A fast triangle is used to modulate the pitch, but only by a small amount.
Amp [0, 50, 76, 64]
To add an interesting dynamic element to the sound, the amplifier envelope amount is reduced and supplemented by LFO-driven amplitude modulation.
Effects [0, 0, 10, 0]
Add chorus or reverb as desired.

Listen to a sample: Dirty Bass

10.8 Alien

Modulating on pitch with sample and hold makes for a classic sci-fi alien/robot sound.

Osc [Square, 4’, 8, 0]
A clean sound reminiscent of computers is appropriate for this patch, and so square wave is the best candidate, with a higher than normal range setting.
Filter [108, 60, -24, 50]
Very little filtering is needed for this sound since we want plenty of high frequency harmonics, but high pass filtering can be useful to make it a bit more ‘tinny’ — especially when playing chords. Resonance and a negative envelope amount enhance the effect.
Env [33, 65, 110, 23]
A longer attack gives a sense of ‘tuning-in’ that works well with this sound, while the other envelope parameters have fairly standard values.
LFO [S&H, 64, 80, 89]
Clearly the sample-and-hold modulation is the signature component of this patch, and both pitch and filter amounts are set to quite high values to ensure it produces a significant effect.
Amp [0, 109, 20, 64]
Introducing some LFO driven amplitude modulation is in keeping with the other modulation settings in this sound.
Effects [0, 0, 0, 0]
For this sound, the delay and overdrive effects can add some interesting features to the final result.

Listen to a sample: Alien

10.9 Pulse

A common feature of synthesiser music is a pulsing sound that supports either single notes or chords. Square and ramp LFO waveshapes are usually at the core of such sounds, and the rate should be adjusted to suit the music being played — either manually or through the synthesiser’s LFO sync capability.

Osc [Tri4/Saw96, 8’, 8, 3]
An almost pure sawtooth wave gives the harsh foundation needed for this sound, with some detune adding the dynamic background interference.
Filter [50, 100, 50, 0]
The filter should open and close over a large range, so the cut-off is set low and the envelope amount high. As a very ‘electronic’ sound, resonance is a dominant component of its final character.
Env [1, 33, 80, 10]
A very fast attack but then dropping to a substantially lower sustain value lets the sound have an immediate impact before fading a little and letting the modulations come to the fore.
LFO [Sqr, 63, 0, 70]
A square wave modulation gives this sound its pulsing nature, switching the filter cut-off rapidly between two limits.
Amp [0, 127, 66, 64]
Introducing substantial LFO driven amplitude modulation further emphasises the pulsing that is present due to the other modulation settings in this sound.
Effects [0, 0, 0, 12]
Add chorus or reverb as desired.

Listen to a sample: Pulse

10.10 Pad

Another classic synth sound — a very slow, rich, modulating, pad.

Osc [Sawtooth, 8’, 8, 7]
Use a pure sawtooth for maximum harmonic input, with at least 8 note polyphony, since this sound is best used with large chords. Adding detune gives a sense of slow, cycling motion in the underlying harmonics.
Filter [100, 70, 63, 0]
This patch remains effective with the filter cut-off set either high or low, with higher values making a lighter pad and lower values a darker sound. Plenty of resonance and envelope amount provide the required timbre and dynamics.
Env [105, 36, 92, 100]
Very slow attack and release are characteristic features of synthesiser pad sounds.
LFO [Sine, 0, 0, 0]
Unused since the slow modulations in this patch are all provided by the envelope.
Effects [0, 0, 15, 0]
Add chorus or reverb as desired.

Listen to a sample: Pad

10.11 Piano

It is impossible to reproduce the complex sound of a piano with subtractive synthesis, and even electric piano sounds are difficult. Nevertheless, seeing it is such an important sound, it is important to at least attempt an acceptable version.

Osc [Saw73/Sqr27, 8’, 8, 2]
Start with a sawtooth/square mixture — increasing the square wave component will make a more ‘electric piano’ sound. A little bit of detune produces the piano-like tone that results from multiple strings for the same note.
Filter [71, 43, 4, 40]
Choose a cut-off and resonance combination that creates a harmonic profile that is suggestive of the harmonics and resonances inside a piano. A bit of high pass filter helps keep the sound clean.
Env [0, 60, 0, 37]
A piano sound is the result of a struck string, so instantaneous attack and no sustain is required. A moderate value for release makes it easier to play a piano style on a synthesiser keyboard.
LFO [Sine, 0, 0, 0]
The LFO is unused, but if added in, it can improve the correspondence with some classic electric piano sounds.
Effects [0, 0, 15, 0]
A reverb effect works well to enhance the basic piano sound.

Listen to a sample: Piano

10.12 Squash

Another purely electronic sound, with limited polyphony but quite effective for leads. The sound varies dramatically when sustained.

Osc [Tri37/Saw63, 16’, 2, 0]
Yet another patch that uses a 1:2 mix of triangle and sawtooth waves at its base. The lower range setting introduces some punchiness to the sound, and 2-note polyphony strengthens each note with 8 voice layering (and the lack of detune means no harmonic cancellation is occurring).
Filter [95, 127, 0, 0]
Maximum resonance dominates this sound, and the filter cut-off is chosen so as to maintain a lot of high frequency components, while also leaving a lot of space for the substantial LFO modulation.
Env [0, 0, 127, 0]
This sound has no envelope driven modulation.
LFO [Tri, 26, 3, 100]
A relatively slow triangle LFO is used to add a little vibrato, and a lot of filter modulation — the key character of this patch.
Effects [15, 4, 0, 0]
A combination of chorus and delay is commonly employed in synth leads.

Listen to a sample: Squash

11 Other Kinds of Synthesis

11.1 Additive Synthesis

We have seen how all the different waveshapes are built up from sine wave components, i.e. the harmonics. So, it follows that with enough independent sine wave oscillators, each harmonic may be directly generated at any required level. This is additive synthesis, and obviates the need for a filter.

The catch is of course that it is somewhat impractical to have the large number of oscillators that would be required to do this effectively. For example, with a low frequency sawtooth wave, say C1 on the piano at 32.7Hz, even the 100th harmonic is only a little over 3kHz - well within the range of human hearing. As a result, there are only very few synthesisers based on this type of synthesis.

Nevertheless, with a few appropriately chosen harmonic ratios, the generation of many interesting and varied timbres is possible using this additive approach.

Hammond have used a standard set of 9 drawbars on their organs for more than 80 years, pitched at 16’, 5⅓’, 8’, 4’, 2⅔’, 2’, 1⅗’, 1⅓’ and 1’, corresponding to intervals of a sub-octave, 5th, primary, octave, 12th, 15th (double octave), 17th, 19th and 22nd (triple octave) as shown in the next two figures.

Standard drawbar harmonics
Hammond Organ Drawbars

The following app emulates the 9 drawbars. Use it to see and hear the effect on the waveform as the harmonic levels are altered.

Drawbar Organ

11.2 Wavetables

Another significant and specifically digital approach to synthesis is the use of wavetables — numerical tables defining the shape of a wave by providing the value of its amplitude sampled sufficiently frequently over a single cycle.

In this method of synthesis, the standard sine, triangle, sawtooth etc oscillators are replaced with waveforms digitally generated from the wavetables. Additionally, the generated waves can be made to evolve over time, by interpolating between wavetables, or by introducing modulation by having related wavetable definitions for the attack, decay, sustain and release stages of an envelope for instance.

The PPG Wave from 1981 was the best early example of such a synthesiser. Shown below are 4 examples from the PPG Wave wavetables.

Waves 24, 60, 68 and 245 from the PPG Wave Synthesiser

Use the following app to experiment with wavetable synthesis by drawing any desired waveshape, listening to its sound, and seeing its spectrum. In particular, see the effect of smoothing on the resulting sound, and relate it to the change in higher frequency harmonics.

It is also interesting to start with a standard waveshape, and then corrupt it slightly (e.g. by clipping the peaks) and seeing the effect on the harmonics.

Wavetable Synthesis

11.3 FM Synthesis

All the different approaches to synthesis are concerned with introducing and shaping harmonics to create new sounds. In subtractive synthesis, we start with a basic wave from an oscillator and apply a filter and modulation, whereas in additive and wavetable synthesis the harmonics are added via direct specification.

Frequency Modulation (FM) Synthesis is yet another approach, that in its most basic form just involves one sine wave modulating another, yet it is probably the most successful at efficiently generating complex and distinctive waveforms.

Any discussion of FM synthesis is necessarily more theoretical than is required for the other topics we have covered, since the ideas that it is based on are very mathematical in nature. However they are a natural extension of something we’ve already seen: the LFO modulation of pitch.

This is what a standard LFO-driven vibrato it looks like:

Vibrato

But what happens as the modulator increases into audio frequencies?

The following figure shows the result of taking a sine wave oscillating at 262Hz (middle C), and modulating it by another sine wave of frequency from 0 to 600Hz in steps of 200Hz.

Increasing FM modulation frequency

A very complex, rich structure quickly becomes apparent, since, unlike with an LFO, the modulator is fast enough to interfere with individual cycles and thus change the waveshape.

Additionally, we can increase the amount of modulation. In the following figure the modulation frequency is fixed at 60Hz, and the unmodulated wave is shown along with one where modulation is applied, and subsequently with the modulation amount increased by a factor of 5 and by a factor of 15.

Increasing FM depth

But what does it sound like?

Not like vibrato anymore, but a harmonically rich, new sound capable of producing metallic and bell-like tones, the tine tones of electric pianos, raspy bass sounds, and percussion.

These are the distinct strengths of FM synthesis, and are complementary to the strengths of subtractive synthesis.

Generally an FM synthesiser will not have a filter, but envelopes play an important role in shaping both the modulation and the audio output.

11.4 The Mathematics of FM

The mathematical expression \(A\sin(2\pi ft)\) describes a sine wave with constant frequency, \(f\), and constant amplitude, \(A\). Modulating the frequency is done by adding a time-varying component to the frequency term. Writing the base frequency for the main wave as \(C\) (for carrier), and modulating that frequency using another sine wave of frequency \(M\) (for modulator) and amplitude \(D\), the expression changes to \[A\sin(2\pi Ct+I\sin(2\pi Mt))\] where \(I = \frac{D}{M}\) is the index of modulation.

This is the basic equation of FM synthesis, and the ratio \(H=\frac{M}{C}\) is known as the harmonic ratio.

We have already seen and heard this when using an LFO to modulate the frequency of an oscillator — in such cases the modulation is quite slow and its vibrato nature easily heard. But, as we saw above, in FM synthesis the modulating frequency is not so constrained, and the effect on the audio output becomes much more complex.

The basic FM equation generates a cluster of harmonics centered about the carrier frequency \(C\), called side-bands, with a density that depends on the modulation frequency \(M\). When the ratio of these frequencies is an integer, an harmonic single-tone is produced. Departing from an integer relationship leads to strange and interesting harsh inharmonic sounds.

Specifically, the harmonics introduced have frequencies given by \(C\pm kM\) for integer \(k\). (This can become negative, but since \(\sin(-x) = \sin(x+\pi)\), the negative frequency terms are simply phase shifted versions of their positive frequency counterparts, and so it is the absolute value of their frequency that we consider in the spectrum). The amplitude of the harmonics drops rapidly, with the number of significant harmonics given approximately by \(I+1\).

Some informative specific cases are:

The following three figures illustrate these features.

Carrier frequency 1209Hz, H=\frac{1}{8}, D = 125 \implies I = 0.827.
Carrier frequency 262Hz, H=2, D = 500 \implies I = 0.954.
Carrier frequency 262Hz, H=2.4694, D=500 \implies I = 0.773.

11.5 Exploring FM

The following app supports exploring the waveforms and sounds that can be produced by FM synthesis.

Some things to try include:

FM Synthesis

11.6 FM Algorithms

Now we have covered the idea behind FM synthesis, it’s time to look at how it can be used in practice.

The basic building block of FM synthesis is an operator, which is just FM terminology for an oscillator (usually a sine wave) and an associated envelope. If the operator connects to the output and so produces sound, it is called a carrier. If instead it connects to another operator, it is called a modulator since its oscillations are not heard but are instead used to modulate other operators (carriers or modulators).

The overall routing of modulators and carriers is called the algorithm, and designing a sound with FM synthesis involves choosing an algorithm and subsequently adjusting the operator levels (volume for carriers, modulation amount for modulators) and frequencies. If the modulator and carrier frequencies are kept in integer relationships, harmonic results are generated. Departing from this introduces harshness or growl to the sound. This is one of the counterintuitive aspects of sound design with FM synthesis — fine adjustments to the harmonic ratio have the largest effect on the synthesised sound.

Most FM synthesisers use 4 or 6 operators, and come with a collection of predefined algorithms. The following figure shows the basic building blocks of an FM algorithm.

Some building blocks of FM algorithms

Figure (a) is the situation we have been exploring — a single carrier being acted upon by a single modulator.

Adding an additional operator to modulate the modulator as in figure (b) is a natural extension, though it is already getting quite tricky to visualise the interaction.

Figures (c) and (d) show how multiple modulators can be combined to act on a single carrier (the individual modulations will add), or a single modulator can simultaneously act on multiple carriers.

Figure (e) is the special case of feedback, where an operator modulates itself. We saw in section 1.2.1 that many sine waves must be added to generate an effective square wave or sawtooth. In FM synthesis feedback can be used to make a sawtooth wave from a single sine wave oscillator, since as the feedback is increased, the harmonics introduced approach a drop off rate of \(\frac{1}{n}\). FM synthesis can also produce quite a good square wave with just 2 sine waves, since a modulation frequency of double the carrier frequency includes only the odd harmonics and produces the wave shown in the following figure.

Approximate square wave from 2 sine waves

Linear vs exponential FM

There is a subtlety in FM synthesis to do with the way in which the frequency modulation is applied. If the modulation is applied as Volts-per-octave, as it is in most analogue synths, then the upward and downward modulation amounts will be the same intervals.

Specifically, if the modulation amount is a semitone:

  • 440Hz + one semitone = 466Hz
  • 440Hz - one semitone = 415Hz

resulting in an average frequency of 440.5Hz, slightly above the original 440Hz.

If the modulation amount is 0.7V, corresponding to an interval of a 5th:

  • 440Hz + one fifth = 659Hz
  • 440Hz - one fifth = 294Hz

and this time the average frequency is 476.5Hz, now much higher than the original value.

If we go further and modulate by a full octave:

  • 440Hz + one octave = 880Hz
  • 440Hz - one octave = 220Hz

the average frequency is 550Hz, and the modulation has driven the frequency up by a major third.

This is exponential FM, and it creates an increase in pitch as the modulation is applied.

The alternative approach, which is much easier to do digitally than with analogue electronics, is to apply a modulation that is linear in pitch (rather than note). Then the average frequency will be unchanged with modulation amount. This is linear FM and using it allows an FM synth to stay in tune regardless of the modulation level.

11.7 Samplers

Samplers generate their sound using digital techniques similarly to wavetable synthesisers, except, rather than using stored single cycles of periodic waves as the primary sound generation device, a sample will employ a large collection of much longer pre-recorded and digitised samples. When a note is played, these samples are retrieved and played to provide a realistic reproduction of the recorded instrument.

Depending on the available memory, a single sample can be used across a few notes (with pitch shifting), and a single note can be represented by multiple samples in order to capture different aspects of playing the sampled instrument — e.g. playback different samples depending on the key velocity.

With samplers, the focus is very much on the realistic reproduction of the sounds of other instruments. Nevertheless, samples need not be traditional instruments, but can be completely arbitrary sounds, often natural sounds like running water, or industrial sounds like machinery or breaking glass.

Once the sound is played back, it can then be modulated by LFOs, envelopes, and even filters if desired, just as in subtractive synthesis.

Initially extremely expensive, as the availability of greater processing power and memory capacity grew, these synthesisers gained support for more and longer samples, and time-dependent processing increased the accuracy of the virtual instruments.

Sometimes the term rompler is used to describe a sampler that has no audio recording capability and thus can only use pre-existing samples stored in its ROM.

Glossary

Additive Synthesis
Sound synthesis by direct specification of sine wave harmonic frequencies and levels.
Wavetable Synthesis
Sound synthesis by direct specification of waveshape amplitude data.
Frequency Modulation Synthesis
Sound synthesis by modulating sine waves by other sine waves of similar frequency.
Operator
FM term for an oscillator and associated envelope.
Carrier
An FM operator that is used to produce sound.
Modulator
An FM operator that is used to modulate other operators (either carriers or other modulators).
Harmonic Ratio
The ratio of the modulator frequency to the carrier frequency in FM synthesis.
Index of Modulation
A factor in the FM wave equation that quantifies the amount of modulation applied to the carrier wave.
Algorithm
A predefined routing of the modulator and carrier operators.
Feedback
When an FM operator is configured to modulate itself.
Exponential FM
If frequency modulation is applied using V/oct, then there will be a increase in the average frequency of the output as the modulation amount is increased.
Linear FM
If frequency modulation is applied as a fixed change of pitch in each direction, then the average frequency of the output will be independent of the modulation amount.
Sampler
Synthesis by playing stored digitised samples of sounds.
Rompler
A sampler that can only use pre-existing samples stored in its ROM.

12 A Brief History

12.1 Synthesiser Prehistory

Beginning at the turn of the 20th century, and especially in the 1920s, a stream of fantastically named electro-mechanical instruments were invented and used in performance and recording.

The first one of note was The Telharmonium, built by Thaddeus Cahill in 1897; an enormous, tonewheel controlled machine that was designed to pipe music via phone lines, and can be considered a progenitor of the Hammond Organ.

The Ondes Martenot built by Maurice Martenot in 1928, and the Trautonium by Friedrich Trautwein in 1929, each used a continuous wire for frequency selection, the first by moving a ring and the second by pressing with a finger (including sensitivity to the pressure). The Ondes Martenot could generate various different waveshapes, and the Trautonium included 2 resonant filters.

Harald Bode, who was to play an extremely significant role in the development of the synthesiser, built the Warbo Formant Organ in 1937, with 4 voices, an envelope and filters. The Hammond Novachord from 1939 had 72 note polyphony, LFO modulation, and generated sound using subtractive synthesis via 3 resonant bandpass filters.

Also deserving mention is the Electronic Sackbut built by Hugh Le Caine in 1948, that included voltage control, adjustable waveforms, and continuous modulation using a mod wheel.

Each of these instruments demonstrated techniques and devices that would evolve into standard synthesiser features. Simultaneously, there were many advances in the technology used in electronic organs, and, of course, the development of transistors and increasing miniaturisation in electronics. Not to be overlooked, the advent of programmable computers was primed to have a large impact on electronic music.

12.2 Evolution of Synthesisers

Analogue

By the mid 1960s voltage control, modular, subtractive synthesis was established, and the sounds were increasingly employed in popular music and film soundtracks. Nevertheless, the size, cost and complexity of the instruments kept mainstream commercial use minimal until the early 1970s when the first portable synthesisers began to appear.

Also around this time, instruments that were only semi-modular in nature, or even wired entirely internally, were produced, reducing the complexity of operation and thus increasing their broader appeal. As more musical artists and composers used these synthesisers, sometimes driven by the new sonic possibilities, sometimes due to the affordability of particular instruments, their new sounds came to increasingly wider mainstream attention.

Polyphony increased the appeal and utility of synthesisers, but it also increased the complexity and cost (since it essentially required a complete copy of the analogue electronics for each voice), and so even today many analogue synthesisers remain monophonic.

Digital

Advances in computing power led first to the integration of digital technology with analogue synthesisers, replacing some of the modules with digital versions, improving tuning and stability, and most importantly, storing of patches in memory, and controlling and playing via a computer.

Eventually purely digital synthesisers appeared, exploiting other methods of sound generation such as sampling, wavetables, frequency modulation, as well as software synths implemented entirely on a computer. These instruments were frequently multitimbral (i.e. they could simultaneously play multiple patches), and more easily provided additional features such as sequencers, arpeggiators and effects.

Virtual Analogue

Nevertheless, there remained significant interest in the sound generation approach used in analogue synthesisers, leading to virtual analogue instruments, i.e. synthesisers that digitally emulate analogue electronics. These instruments create their sound in the same way as analogue synthesisers, and provide the same kind of controls, yet retain all the advantages of a digital device.

This illustrates what can be considered a minor paradox inherent in the evolution of synthesisers — as technological advances improved the closeness of synthesised sounds to conventional instruments, the synthesisers became less interesting and consumer pressure developed to return to an earlier state. Another way this trend revealed itself was in attitudes about analogue vs digital sound generation. Specifically, the clarity of digital is often judged less desirable than what is called the ‘warmth’ of analogue. This has meant both a resurgence of interest in pure analogue, and a corresponding effort to make digital sound generation reproduce some of the imperfections inherent in analogue.

12.3 Timeline

1955

The first device to be actually called a synthesiser was the RCA Electronic Music Synthesizer Mark I.

This was a two-voice polyphonic system. Each voice supported patching of attack and decay, high pass and low pass filters, a low frequency modulator and resonators, in the manner that subsequently became standard with modular synthesisers. The electronics was built with vacuum tubes, and consequently the device filled a large room where it was housed at Columbia University.

It also included a sequencer since the aim was to use electronically generated sounds in recording, and control was via punched paper tape prepared offline.

1961

Harald Bode, an engineer working on electronic organs and an inventor of several pre-synthesiser instruments (as mentioned in the prehistory section above), presented a paper on using transistors for voltage control of electronic musical instruments, essentially inventing the Modular Synthesiser. The modular approach uses voltage for all aspects of signal generation and control, and the musician is responsible for manually constructing all signal paths with physical cables.

1964

The first commercial modular synthesisers arrived essentially simultaneously in 1964: The Moog Modular by Bob Moog (pictured left), Moog System 55 and the Buchla 100 by Don Buchla (pictured right). Buchla 100

Buchla was very interested in experimental music, and wanted to break away from keyboards entirely since they were conceptually linked to strings, something he felt was inappropriate for electronic music. Moog, on the other hand, was not so idealist, and therefore his synthesisers were a bit more musician friendly and included a keyboard. Ultimately the Moog Modular proved to be more influential.

1967

Rhythm Ace FR-1 Ikutaro Kakehashi, who went on to found Roland in 1972, released one of the first drum machines in 1967, the Rhythm Ace FR-1. The device could play preset rhythm patterns (either individually or in combination) across 4 voices — cymbal, claves, cowbell and bass drum. It also supported manual play, and enabling or disabling of the voices.

Also in this year John Chowning at Stanford University invented the FM synthesis algorithm, which he subsequently licensed to Yamaha in 1974.

1968

Wendy Carlos - Switched-On Bach Wendy Carlos - Switched-On Bach: an award-winning, million-selling album of music by Bach performed on a Moog Modular. It demonstrated the novelty, expressiveness and musicality possible with the Moog, and had enormous influence on the subsequent adoption and use of synthesisers across all musical genres.

1970

Keith Emerson, of the progressive rock supergroup Emerson, Lake and Palmer, began using the Moog Modular and, starting with his solo to conclude their song ‘Lucky Man’, eventually became more associated with the Moog sound than any other musician. He even used his Moog Modular when touring — despite its size!

1971

Moog Minimoog The Minimoog (pictured left) was the first genuinely portable synthesiser. It was semi-modular, i.e. all its modules were connected internally, thus allowing the synthesizer to work without requiring external patch cables. Instead, knobs and switches were used to manage the connections.

Despite Moog not fully appreciating the significance of the change at the time, it can be convincingly argued that the Minimoog is the most influential synthesiser of all time, with the control workflow it presented being largely followed by all subsequent analogue synths.

ARP 2600 Similarly, ARP reduced their large modular ARP 2500 to the portable ARP 2600 (pictured right), while retaining an impressive collection of features — including ring modulation, sample and hold, and reverb. Tom Oberheim, soon to be an leading synthesiser designer in his own right, made a duophonic kit for the ARP 2600, enabling the playing of two notes independently, each assigned to different oscillators.

This year also saw jazz pianist Herbie Hancock embrace synthesizers and electronic music with his Mwandishi albums.

1973

Laurie Spiegel developed the GROOVE system (named from Generated Realtime Operations On Voltage-controlled Equipment) for electronic music. This was a computer-based system, where the computer was programmed to play a collection of analogue synthesisers. Her interest was in developing and studying the logic required for algorithmic composition and improvisation, creating fascinating mathematically derived, polyrhythmic music along the way.

The Expanding Universe: is her 1980 album (though I recommend the expanded release from 2012) that captures these ideas and presents a marvellous rendition of the resulting intricate melodies and interweaving rhythms. Another of her compositions, Harmonices Mundi (Harmony of the World), was included on the ‘Sounds of Earth’ disc sent into space on Voyager — a mathematical composition based on ideas from Johannes Kepler in the 17th century.

1974

Kraftwerk - Autobahn Kraftwerk - Autobahn: A hugely influential album of repetitive, pulsing electronic soundscapes using synthesisers, vocoders, drum machines and occasionally traditional instruments.

Tangerine Dream - Phaedra Tangerine Dream - Phaedra: An internationally successful album of experimental, atmospheric, futuristic, electronic music that mixes melody, arpeggios, effects and noise, and laid the foundations for the Berlin School approach to electronic music.

Isao Tomita - Snowflakes Are Dancing: Reworking Debussy’s tone paintings as ambient synth music using a Moog Modular, a Mellotron, and some additional effects units.

1976

Jean Michel Jarre - Oxygène Jean Michel Jarre - Oxygène: The first internationally successful album by possibly the most famous performer/composer of electronic music of all. Infused with classical, symphonic ambition, the bright and jumpy themes undergo rich development, resulting in a hypnotic mix that presented a new vision for electronic music.

1978

Sequential Circuits Prophet 5 Several important advances are evident in the Prophet 5 by Sequential Circuits. Created by Dave Smith, it had five voice polyphony, with two oscillators per voice, and included a microprocessor and was thus programmable. Additionally, the Prophet 5 included patch memory that supported storing and restoring the value for every knob. Such a feature was a boon to performing synthesists, since they could prepare many preset sounds and switch between them instantly, and to sound designers, since they could experiment with different adjustments knowing they could always get back to the original state with ease.

1979

Fairlight CMI With dual 8-bit 6800 microprocessors, a light pen on monitor interface, and a lot of dedicated RAM and other computer circuitry, Peter Vogel and Kim Ryrie of Sydney created the Fairlight CMI — an 8-voice polyphonic sampling and sequencing synthesiser. Able to sample real world sounds (up to 1 second), manipulate wavetables, and interface to analogue synths, the Fairlight represented a major advance, and was used extensively by Stevie Wonder, Peter Gabriel, Kate Bush, and Herbie Hancock (who even demonstrated it in a dedicated segment on Sesame Street in 1983).

Two subsequent major revisions saw the capabilities expand over its 10 years of production.

1981

The original proposal for MIDI, or Musical Instrument Digital Interface, was presented at the Audio Engineering Society conference in 1981 by Dave Smith and Chet Wood. MIDI, designed as a standard communication protocol for electronic instruments, is a message-based serial protocol covering timing, the playing and releasing of notes, and setting controls. MIDI was standardised in 1983, and rapidly adopted by all manufacturers.

1982

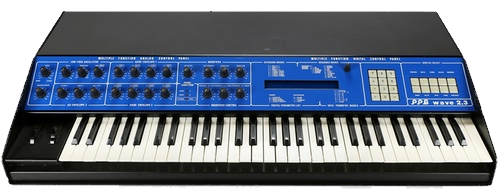

PPG Wave The PPG Wave 2.2 combined a wavetable-based digital sound generation engine with analogue filters and amplifiers,and featured 8-voice polyphony, and an onboard sequencer that supported recording filtering and wavetable changes in real time. Built around the 8-bit 6809 CPU, the PPG Wave provided 32 wavetables, each containing 64 waves, providing a sizeable sonic palette for sound generation.

Vangelis - Blade Runner Soundtrack Vangelis - Blade Runner Soundtrack: Deep and foreboding polyphonic strings and pads, haunting layered melodies and pulsating, robotic bass, written to accompany Ridley Scott’s dark & futuristic film. Various synthesisers and traditional instruments are used, but the music is most associated with the CS-80, Yamaha’s monumental and temperamental flagship polyphonic synthesiser from the late 70s.

1983

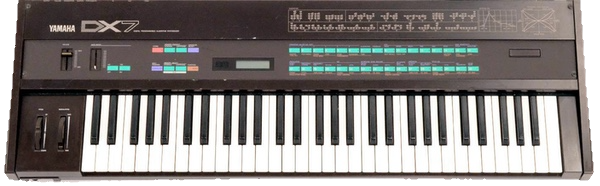

Yamaha DX7 Yamaha’s release of the fully digital DX7 synthesiser, based on the new paradigm of FM synthesis, was a game-changer. It’s extraordinary success heralded a sustained period of dominance by digital synthesisers. The DX7 was a 6 operator FM synthesiser with 32 algorithms, MIDI capable, and was famous for its electric piano, bell-like, and growly, funky bass sounds.

In a significant departure from the knobby, interactive interface of most analogue synthesisers, programming the DX7 was extremely complex, and managed via a menu and an LCD. Hence most players used the pre-defined sounds, and these are now very recognisable in much of the music of the period.

Yamaha DX7 Brian Eno - Apollo: Atmospheres and Soundtracks: Employing ambient DX7 sounds and additional effects, this music was written to be the soundtrack accompanying a feature film compiled solely from footage of the Apollo moon missions.

1984

Roland Juno-106 One of Roland’s most popular synthesisers was the Juno-106. A 6 voice analogue synthesiser, it made analogue polyphony affordable, and it’s minimal yet sufficient capability was presented in an extremely useful and appealing layout, making electronic sound generation and manipulation accessible to many new musicians.

It included patch memory, MIDI control and is famous for its in-built chorus effect. Although analogue, the oscillators were digitally controlled, meaning the tuning stability problems associated with many earlier analogues were absent.

1988

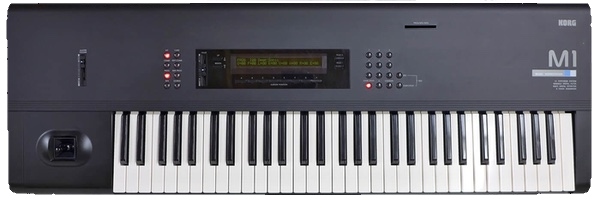

Korg M1 The digital revolution that gained momentum with the DX7 in 1983, and was accelerated by the Roland D-50 in 1987, reached its full dominance with the Korg M1 in 1988 (pictured left). A sample-based synthesiser with 4MB of 16-bit tones in ROM and multiple digital effects, it became the biggest selling synth ever.

The M1 was 16-part multitimbral, and incorporated a multitrack sequencer, and can be considered the first digital workstation.

1995

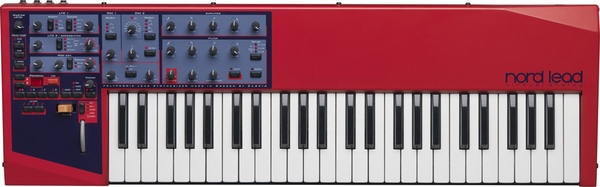

Clavia Nord Lead Moving forward several years brings us to a period of resurgent interest in analogue synthesis. The Clavia Nord Lead managed to tap into that trend by implementing virtual analogue (or VA) synthesis — i.e. a digital emulation of analogue circuitry. This enabled them return to the analogue approach of sound generation without surrendering support for the digital advantages of MIDI, presets, effects etc.

The Nord Lead was 4 part multitimbral, and featured a return to a performance oriented interface with multiple, dedicated knobs for real-time parameter control.

1996

Eurorack The motivating principle of modular synthesis is that the user should have total control of all signals and connections. Eurorack is a hardware form factor standard designed to facilitate mounting, powering and interconnecting combinations of modules from multiple companies, thus encouraging the creation of custom synthesisers of essentially unbounded size and complexity. Since its formal specification by Doepfer in 1996, it has become the standard for modular synthesis, with thousands of modules available, plus a thriving DIY ecosystem.

1997

Access Virus A Increasing DSP power saw the development of the Access Virus series of virtual analogue synthesisers — probably the best regarded of all the VA synths. A 16 part multitimbral synthesiser, the Virus supported wavetables, configurable filters, envelopes, multiple LFOs, multiple effects, and provided the user with a deep modulation matrix where up to 3 sources of modulation per patch were mappable to up to 6 modulation destinations — with every parameter a possible modulation destination.

2014

Roland System 1 Plug-out Synthesiser As computers became increasingly powerful, so did the quality of software synthesisers, and there was increasing interest in software emulations of the many classic synthesisers of the past. A relatively recent twist on this trend was provided by Roland with the Roland System 1 in 2014 (pictured right), and subsequently the System 8 in 2017, and that is the concept of a plug-out. These are fully functional, knob-per-control, virtual analogue synthesisers that also support downloading a ‘plug-out’ software synthesiser and transforming themselves into an (extremely accurate) emulation of that particular instrument.

Many of Roland’s classic monosynths and polysynths are available as plug-outs, making the instrument able to emulate a SH-101 or SH-2, say, or on the System-8, a Juno-106 or, most desired of all, a Jupiter-8.

Appendix — All the Apps

The source for these apps can be found here.

Index

additive synthesis
ADSR
algorithm
amount
amplitude
attack
band pass
bipolar
blue noise
brown noise
carrier
chorus
clipping
cut-off
decay
delay
detune
distortion
dry signal
effect
envelope
exponential FM
feedback
filter
flanger
FM
frequency
frequency modulation
gate
harmonic ratio
high pass
index of modulation
key tracking
linear FM
low pass
MIDI
modular
modulator
monophonic
noise
operator
oscillator
overdrive
paraphonic
phase
phaser
pink noise
polyphonic
portamento
pulse width
release
resonance
response curve
reverb
ring modulation
rompler
sample and hold
sampler
self-oscillation
spectrum
sustain
Teensy
timbre
tremolo
trigger
unipolar
vibrato
waveshape
wavetable
wet signal
white noise

List of Teensy Projects

Credits

Cover image
Building Blocks, by Holger Zscheyge. Retrieved April 2020 from https://www.flickr.com/photos/zscheyge/49012397, CC-BY-SA-2.0.
System 100
Retrieved April 2020 from Roland System 100 @ Wikipedia.org, CC-BY-SA-3.0.
Moog Modular
Retrieved April 2020 from Moog Music – News. Fair use.
Buchla 100
Retrieved April 2020 from The Buchla Archives – Buchla 100. Licence unknown – Fair use.
Album covers
Various. Retrieved April 2020 from Wikipedia.org. Fair use.
Minimoog
Retrieved April 2020 from Minimoog @ Wikipedia.org, Public Domain.
ARP 2600:
Retrieved April 2020 from ARP 2600 @ Encyclotronic.com. Licence unknown – Fair use.
Prophet 5
Retrieved April 2020 from Prophet 5 @ Encyclotronic.com. Licence unknown – Fair use.
Fairlight CMI
Edited version of file retrieved April 2020 from Fairlight CMI @ Wikipedia.org, Public Domain.
PPG Wave 2.3
Retrieved April 2020 from PPG Wave 2.3 @ Encyclotronic.com. Licence unknown – Fair use.
Korg M1
Retrieved April 2020 from Korg M1 @ Wikipedia.org, CC-BY-SA-2.0.
Nord Lead
Retrieved April 2020 from Nord Lead @ Encyclotronic.com. Licence unknown – Fair use.
Doepfer A100
Retrieved April 2020 from Doepfer @ Wikipedia.org, CC-BY-SA-3.0.
Access Virus
Retrieved April 2020 from Access Virus @ Wikipedia.org, CC-BY-SA-3.0.

sidebar-right
